Exportation de scènes 3D

Vue d'ensemble

In Godot, it is possible to export 3D scenes as a glTF 2.0 file. You can export as a glTF binary (.glb file) or glTF embedded with textures (gltf + .bin + textures). This allows you to create scenes in Godot, such as a CSG mesh blockout for a level, export it to clean it up in a program such as Blender, and then bring it back into Godot.

Note

Seul Blender 2.83 et plus récent peuvent importer des fichiers glTF exportés par Godot.

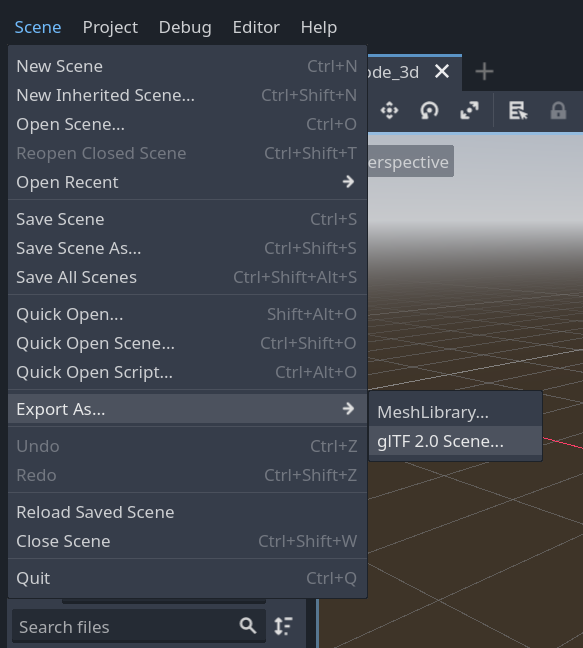

To export a scene in the editor go to Scene > Export As... > glTF 2.0 Scene...

../../_images/gltf_godot_export.png

Limites

Il y a plusieurs limitations à l'exportation glTF.

  • Pas de support pour l'exportation de particules puisque leur implémentation varie selon les moteurs.

  • Les ShaderMaterials ne peuvent pas être exportés.

  • Pas de support pour l'exportation de scènes 2D.

Voir aussi

3D scenes can be saved at runtime using runtime file loading and saving, including from an exported project.
