Up to date

This page is up to date for Godot 4.3. If you still find outdated information, please open an issue.

Android Studio

Android Studio is a free IDE for Android development made by Google and JetBrains. It's based on IntelliJ IDEA and has a feature-rich editor which supports Java and C/C++. It can be used to work on Godot's core engine as well as the Android platform codebase.

Importation du projet

From the Android Studio's welcome window select Open.

../../../_images/android_studio_setup_project_1.png — Fenêtre d'accueil d'Android Studio.

Naviguez jusqu'au <Godot root directory>/platform/android/java et sélectionnez le fichier settings.gradle.
Android Studio va importer et indexer le projet.

Android Studio project layout

Le projet est organisé à l'aide des modules d'Android Studio :

module``lib`` :
- Situé sous``<Godot root directory>/platform/android/java/lib``, il s'agit d'un module de bibliothèque qui organise
  the Godot java and native code and make it available as a reusable dependency / artifact.
- The artifact generated by this module is made available for other Android modules / projects to use as a dependency, via MavenCentral.
Module éditeur :
- Situé sous``<Godot root directory>/platform/android/java/editor``, il s'agit d'un module d'application qui contient
  the source code for the Android port of the Godot Editor.
- This module has a dependency on the lib module.
module``app`` :
- Situé sous``<Godot root directory>/platform/android/java/app``, il s'agit d'un module d'application qui contient
  the source code for the Android build templates.
- This module has a dependency on the lib module.

Building & debugging the editor module

Pour compiler le module editor :

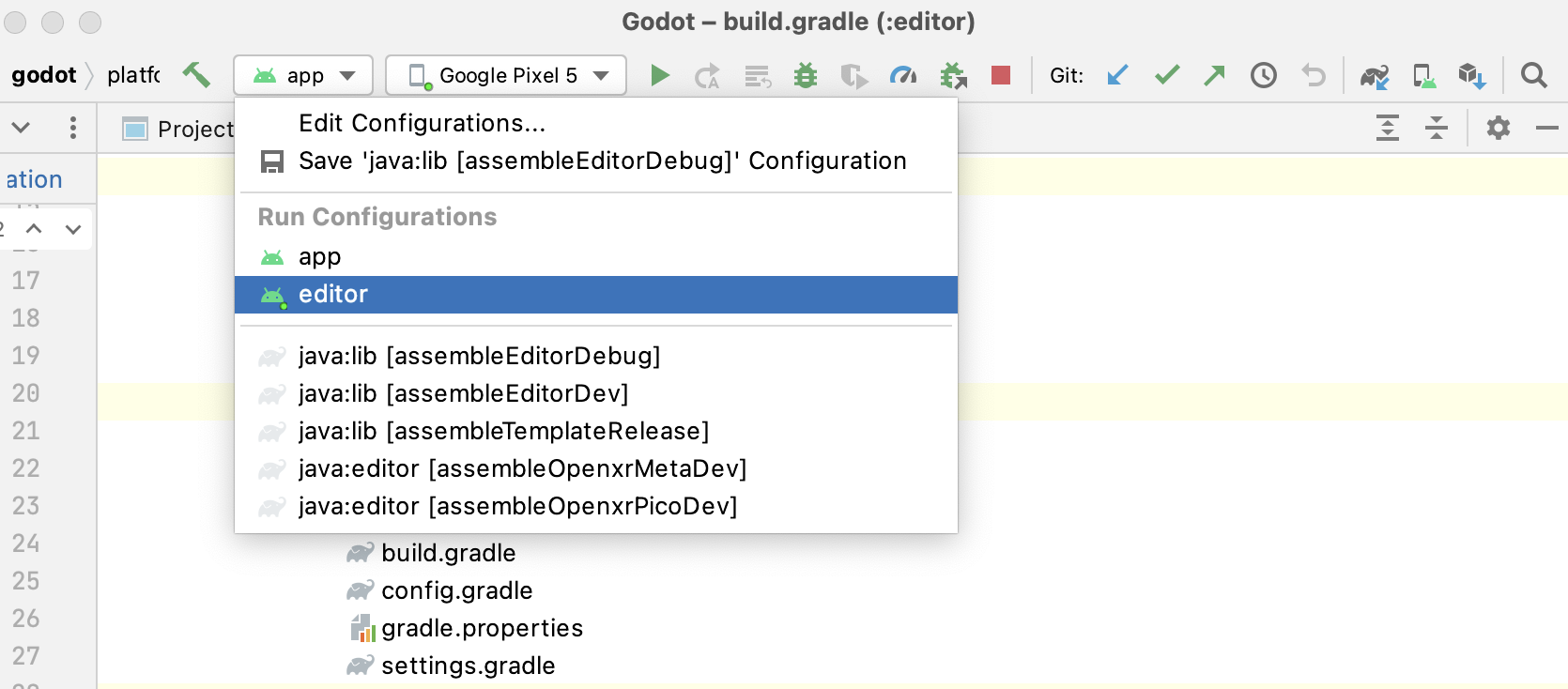

- Select the Run/Debug Configurations drop down and select editor.
- Select Run > Run 'editor' from the top menu or click the Run icon.
Pour déboguer le module editor :

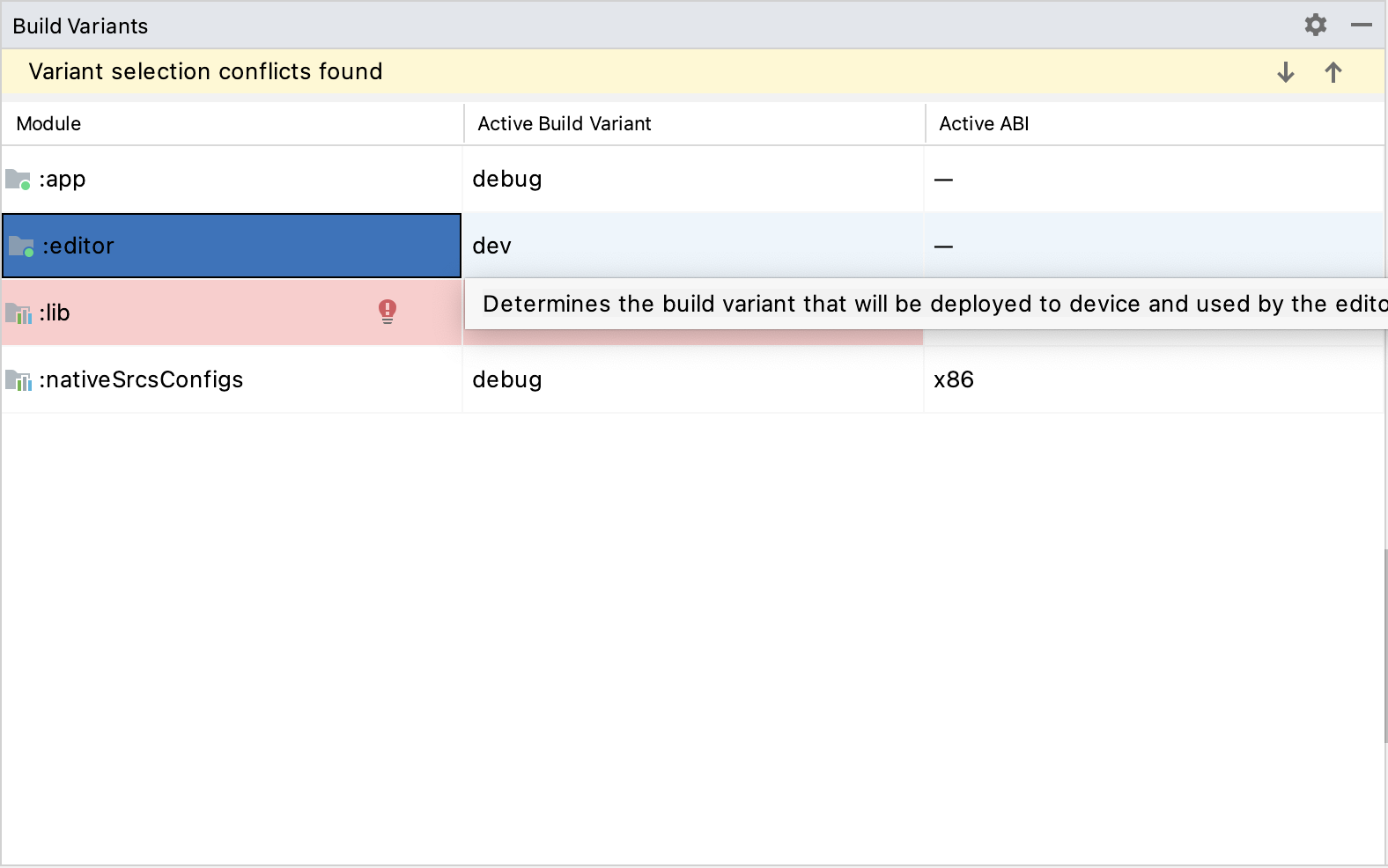

- Open the Build Variants window using View > Tools Windows > Build Variants from the top menu.
- In the Build Variants window, make sure that in the Active Build Variant column, the :editor entry is set to dev.
- Open the Run/Debug Configurations window by clicking on Run > Edit Configurations... on the top menu.
- In the Run/Debug Configurations window, select the editor entry, and under Debugger make sure the Debug Type is set to Dual (Java + Native)
- Select Run > Debug 'editor' from the top menu or click the Debug icon.

Building & debugging the app module

The app module requires the presence of a Godot project in its assets directory (<Godot root directory>/platform/android/java/app/assets) to run. This is usually handled by the Godot Editor during the export process. While developing in Android Studio, it's necessary to manually add a Godot project under that directory to replicate the export process. Once that's done, you can follow the instructions below to run/debug the app module:

Pour compiler le module app :

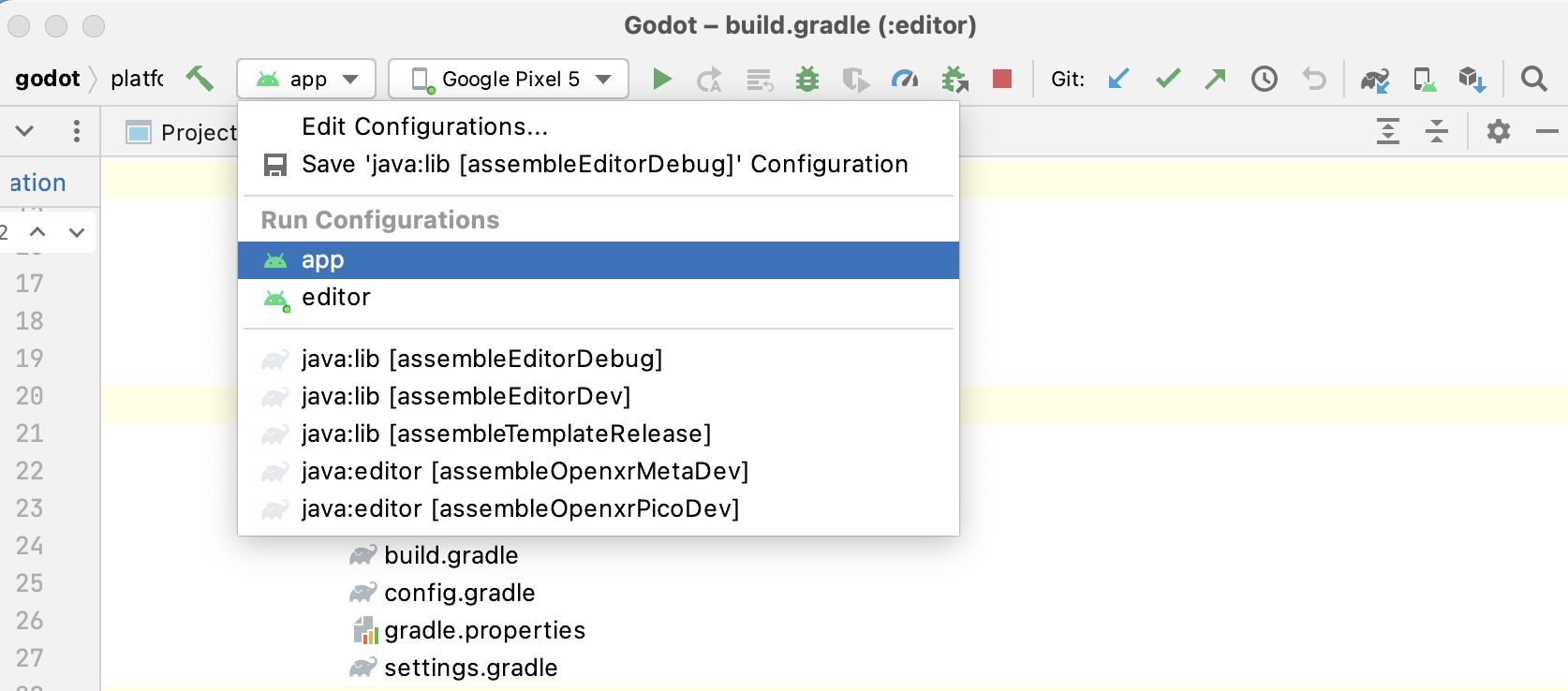

- Select the Run/Debug Configurations drop down and select app.
- Select Run > Run 'app' from the top menu or click the Run icon.
Pour déboguer le module app :

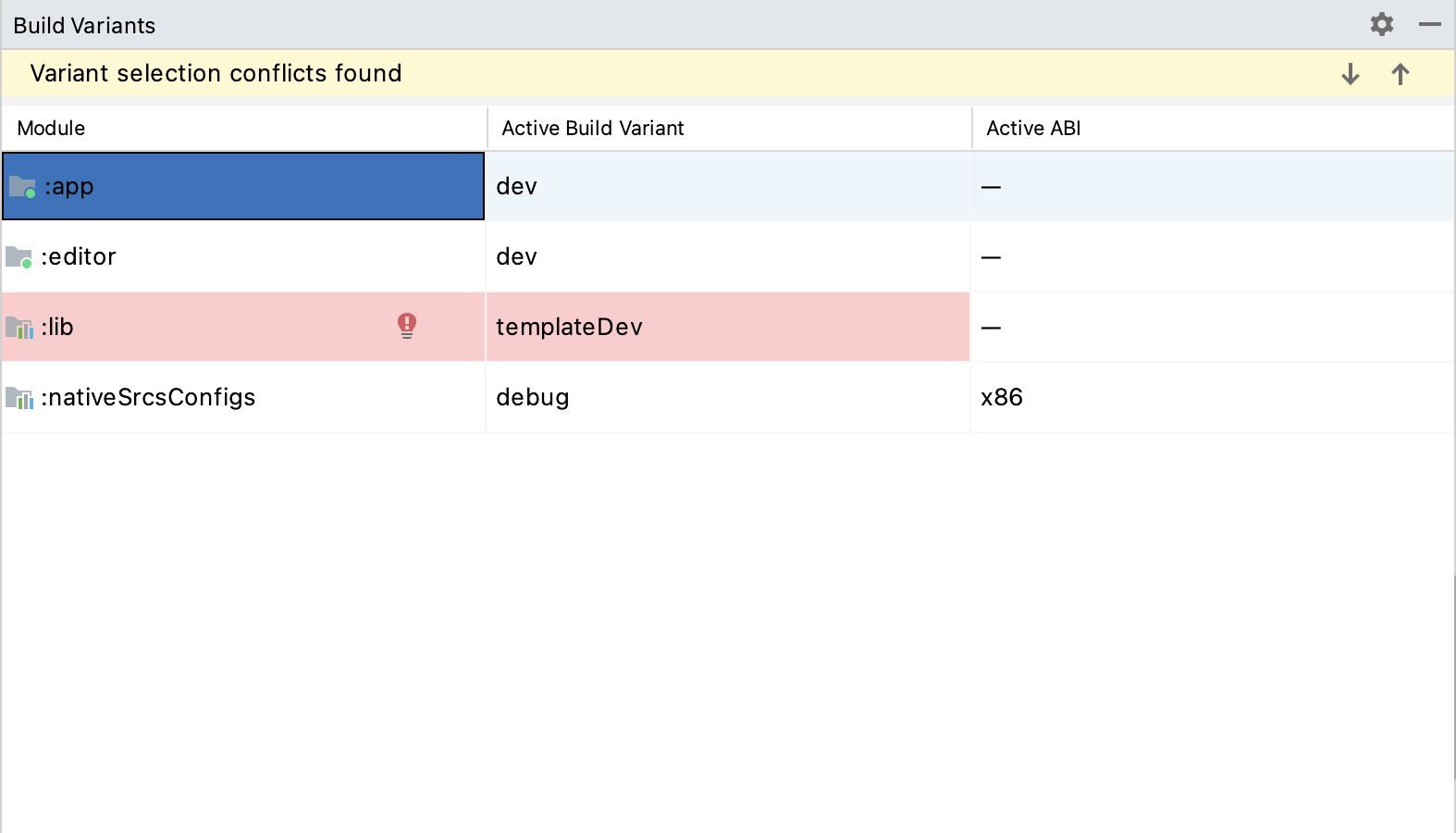

- Open the Build Variants window using View > Tools Windows > Build Variants from the top menu.
- In the Build Variants window, make sure that in the Active Build Variant column, the :app entry is set to dev.

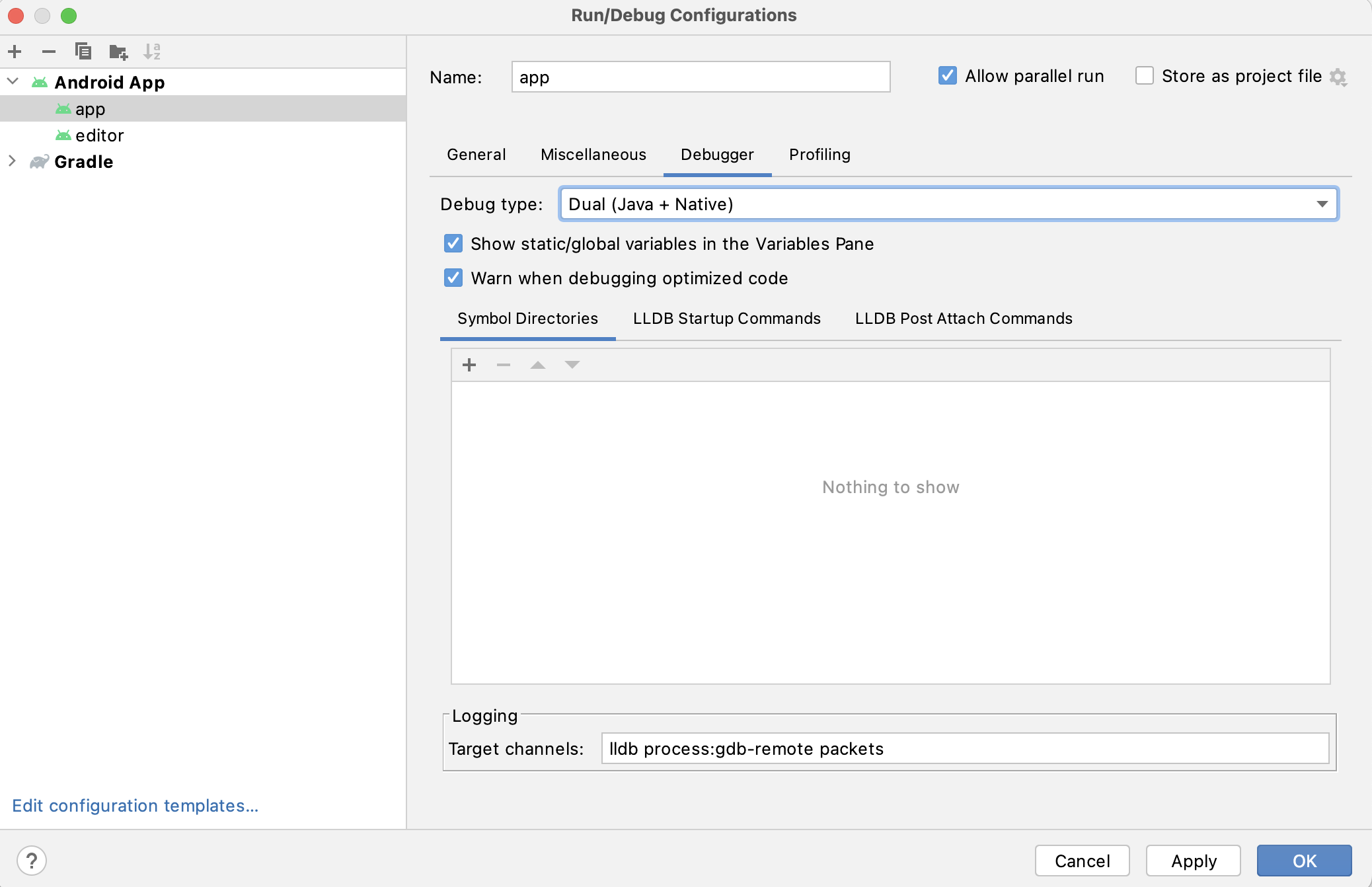

- Open the Run/Debug Configurations window by clicking on Run > Edit Configurations... on the top menu.
- In the Run/Debug Configurations window, select the app entry, and under Debugger make sure the Debug Type is set to Dual (Java + Native)
- Select Run > Debug 'app' from the top menu or click the Debug icon.

If you run into any issues, ask for help in Godot's Android dev channel.
