Visual Studio Code

Visual Studio Code est un éditeur de code multiplateforme gratuit de Microsoft (à ne pas confondre avec Visual Studio).

Importation du projet

Make sure the C/C++ extension is installed. You can find instructions in the official documentation. Alternatively, clangd can be used instead.
Lorsque vous utilisez l'extension clangd, lancer scons compiledb=yes.
Depuis l'écran principal du Visual Studio Code, ouvrez le dossier racine de Godot avec File > Open Folder....
Appuyez sur Ctrl + Shift + P pour ouvrir la fenêtre d'invite de commande et entrez Configure Task.

../../../_images/vscode_configure_task.png

Sélectionnez l'option Create tasks.json file from template.

../../../_images/vscode_create_tasksjson.png

Sélectionnez ensuite Others.

../../../_images/vscode_create_tasksjson_others.png

If there is no such option as Create tasks.json file from template available, either delete the file if it already exists in your folder or create a .vscode/tasks.json file manually. See Tasks in Visual Studio Code for more details on tasks.

Dans le fichier tasks.json, trouvez le tableau "tasks" et ajoutez-y une nouvelle section :

{
  "label": "build",
  "group": "build",
  "type": "shell",
  "command": "scons",
  "args": [
    // enable for debugging with breakpoints
    "dev_build=yes",
  ],
  "problemMatcher": "$msCompile"
}

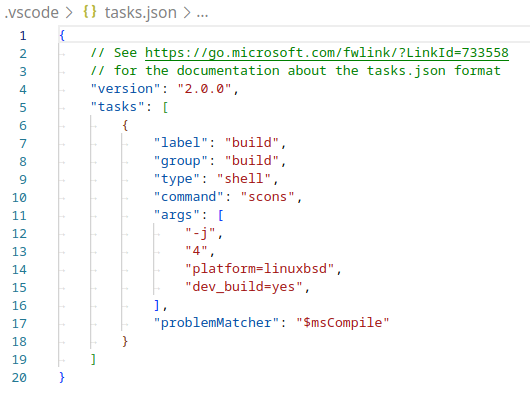

../../../_images/vscode_3_tasks.json.png — Un exemple de `tasks.json` rempli.

Les arguments peuvent être différents selon votre propre configuration et vos besoins. Voir Introduction au buildsystem pour une liste complète des arguments.

Débogage du projet

Pour exécuter et déboguer le projet, vous devez créer une nouvelle configuration dans le fichier launch.json.

Appuyez sur Ctrl + Shift + D pour ouvrir le panneau Run.
Si le fichier launch.json est manquant, vous serez invité à en créer un nouveau.

../../../_images/vscode_1_create_launch.json.png

Sélectionnez C++ (GDB/LLDB). Il peut y avoir une autre option spécifique à la plate-forme ici. Si elle est sélectionnée, adaptez l'exemple de configuration fourni en conséquence.
Dans le fichier launch.json, trouvez le tableau "configurations" et ajoutez-y une nouvelle section :

{
  "name": "Launch Project",
  "type": "lldb",
  "request": "launch",
  // Change to godot.linuxbsd.editor.dev.x86_64.llvm for llvm-based builds.
  "program": "${workspaceFolder}/bin/godot.linuxbsd.editor.dev.x86_64",
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "args": [ "--editor", "--path", "path-to-your-godot-project-folder" ],
  "stopAtEntry": false,
  "cwd": "${workspaceFolder}",
  "environment": [],
  "externalConsole": false,
  "preLaunchTask": "build"
}

{
  "name": "Launch Project",
  "type": "cppdbg",
  "request": "launch",
  // Change to godot.linuxbsd.editor.dev.x86_64.llvm for llvm-based builds.
  "program": "${workspaceFolder}/bin/godot.linuxbsd.editor.dev.x86_64",
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "args": [ "--editor", "--path", "path-to-your-godot-project-folder" ],
  "stopAtEntry": false,
  "cwd": "${workspaceFolder}",
  "environment": [],
  "externalConsole": false,
  "setupCommands":
  [
    {
      "description": "Enable pretty-printing for gdb",
      "text": "-enable-pretty-printing",
      "ignoreFailures": true
    },
    {
        "description": "Load custom pretty-printers for Godot types.",
        "text": "source ${workspaceRoot}/misc/utility/godot_gdb_pretty_print.py"
    }
  ],
  "preLaunchTask": "build"
}

{
  "name": "Launch Project",
  "type": "cppvsdbg",
  "request": "launch",
  "program": "${workspaceFolder}/bin/godot.windows.editor.dev.x86_64.exe",
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "args": [ "--editor", "--path", "path-to-your-godot-project-folder" ],
  "stopAtEntry": false,
  "cwd": "${workspaceFolder}",
  "environment": [],
  "console": "internalConsole",
  "visualizerFile": "${workspaceFolder}/platform/windows/godot.natvis",
  "preLaunchTask": "build"
}

{
  "name": "Launch Project",
  "type": "lldb",
  "request": "custom",
  "targetCreateCommands": [
    "target create ${workspaceFolder}/bin/godot.macos.editor.dev.x86_64"
  ],
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "processCreateCommands": [
    "process launch -- --editor --path path-to-your-godot-project-folder"
  ]
}

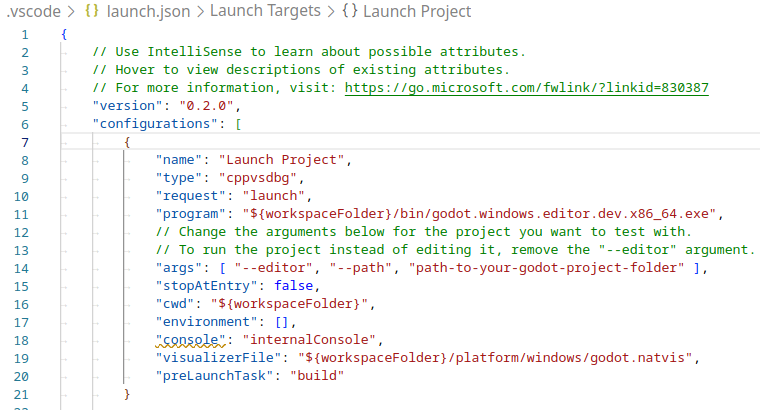

../../../_images/vscode_2_launch.json.png — Un exemple de `launch.json` rempli.

Note

En raison de problèmes de performances sporadiques, il est recommandé d'utiliser LLDB plutôt que GDB sur les systèmes basés sur Unix. Assurez-vous que l'extension CodeLLDB est installée.

If you encounter issues with lldb, you may consider using gdb (see the LinuxBSD_gdb configuration).

Do note that lldb may work better with LLVM-based builds. See Compiling for Linux, *BSD for further information.

The name under program depends on your build configuration, e.g. godot.linuxbsd.editor.dev.x86_64 for 64-bit LinuxBSD platform with target=editor and dev_build=yes.

Configuring Intellisense

Pour l'extension C/C++ :

To fix include errors you may be having, you need to configure some settings in the c_cpp_properties.json file.

First, make sure to build the project since some files need to be generated.
Edit the C/C++ Configuration file either with the UI or with text:

../../../_images/vscode_edit_configurations.webp

Add an include path for your platform, for example, ${workspaceFolder}/platform/windows.
Add defines for the editor TOOLS_ENABLED, debug builds DEBUG_ENABLED, and tests TESTS_ENABLED.
Make sure the compiler path is configured correctly to the compiler you are using. See Introduction au buildsystem for further information on your platform.

The c_cpp_properties.json file should look similar to this for Windows:

{
  "configurations": [
    {
      "name": "Win32",
      "includePath": [
        "${workspaceFolder}/**",
        "${workspaceFolder}/platform/windows"
      ],
      "defines": [
        "_DEBUG",
        "UNICODE",
        "_UNICODE",
        "TOOLS_ENABLED",
        "DEBUG_ENABLED",
        "TESTS_ENABLED"
      ],
      "windowsSdkVersion": "10.0.22621.0",
      "compilerPath": "C:/Program Files/Microsoft Visual Studio/2022/Community/VC/Tools/MSVC/14.39.33519/bin/Hostx64/x64/cl.exe",
      "cStandard": "c17",
      "cppStandard": "c++17",
      "intelliSenseMode": "windows-msvc-x64"
    }
  ],
  "version": 4
}

Alternatively, you can use the scons argument compiledb=yes and set the compile commands setting compileCommands to compile_commands.json, found in the advanced section of the C/C++ Configuration UI.
- This argument can be added to your build task in tasks.json since it will need to be run whenever files are added or moved.

Si vous rencontrez des problèmes, demandez de l'aide sur l'un des canaux communautaires de Godot.

Astuce

To get linting on class reference XML files, install the vscode-xml extension.
