Visuаl Studio Code

Примечание

This documentation is for contributions to the game engine, and not using Visual Studio Code as a C# or GDScript editor. To code C# or GDScript in an external editor, see the C# guide to configure an external editor.

Visual Studio Code is a free cross-platform code editor by Microsoft (not to be confused with Визуальная Студия).

Импортирование проекта

Make sure the C/C++ extension is installed. You can find instructions in the official documentation. Alternatively, clangd can be used instead.
При использовании расширения clangd выполните scons compiledb=yes.
На главном экране Visual Studio Code откройте корневую папку Godot с помощью File > Open Folder....
Press Ctrl + Shift + P to open the command prompt window and enter Configure Task.

../../../_images/vscode_configure_task.png

Select the Create tasks.json file from template option.

../../../_images/vscode_create_tasksjson.png

Затем выберите Others.

../../../_images/vscode_create_tasksjson_others.png

If there is no such option as Create tasks.json file from template available, either delete the file if it already exists in your folder or create a .vscode/tasks.json file manually. See Tasks in Visual Studio Code for more details on tasks.

Within the tasks.json file find the "tasks" array and add a new section to it:

.vscode/tasks.json

{
  "label": "build",
  "group": "build",
  "type": "shell",
  "command": "scons",
  "args": [
    // enable for debugging with breakpoints
    "dev_build=yes",
  ],
  "problemMatcher": "$msCompile"
}

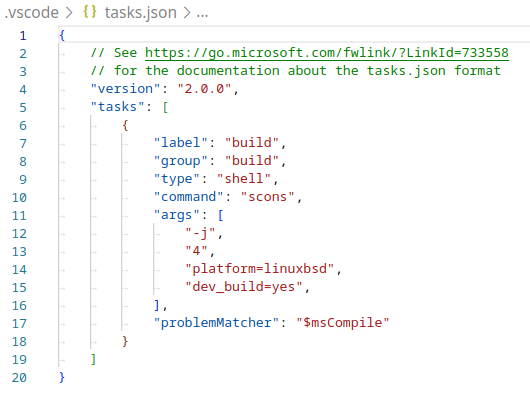

../../../_images/vscode_3_tasks.json.png — An example of a filled out `tasks.json`.

Arguments can be different based on your own setup and needs. See Введение в систему сборки for a full list of arguments.

Debugging the project

Для запуска и отладки проекта необходимо создать новую конфигурацию в файле launch.json.

Press Ctrl + Shift + D to open the Run panel.
If launch.json file is missing you will be prompted to create a new one.

../../../_images/vscode_1_create_launch.json.png

Select C++ (GDB/LLDB). There may be another platform-specific option here. If selected, adjust the configuration example provided accordingly.
Within the launch.json file find the "configurations" array and add a new section to it:

{
  "name": "Launch Project",
  "type": "lldb",
  "request": "launch",
  // Change to godot.linuxbsd.editor.dev.x86_64.llvm for llvm-based builds.
  "program": "${workspaceFolder}/bin/godot.linuxbsd.editor.dev.x86_64",
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "args": [ "--editor", "--path", "path-to-your-godot-project-folder" ],
  "stopAtEntry": false,
  "cwd": "${workspaceFolder}",
  "environment": [],
  "externalConsole": false,
  "preLaunchTask": "build"
}

{
  "name": "Launch Project",
  "type": "cppdbg",
  "request": "launch",
  // Change to godot.linuxbsd.editor.dev.x86_64.llvm for llvm-based builds.
  "program": "${workspaceFolder}/bin/godot.linuxbsd.editor.dev.x86_64",
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "args": [ "--editor", "--path", "path-to-your-godot-project-folder" ],
  "stopAtEntry": false,
  "cwd": "${workspaceFolder}",
  "environment": [],
  "externalConsole": false,
  "setupCommands":
  [
    {
      "description": "Enable pretty-printing for gdb",
      "text": "-enable-pretty-printing",
      "ignoreFailures": true
    },
    {
        "description": "Load custom pretty-printers for Godot types.",
        "text": "source ${workspaceRoot}/misc/utility/godot_gdb_pretty_print.py"
    }
  ],
  "preLaunchTask": "build"
}

{
  "name": "Launch Project",
  "type": "cppvsdbg",
  "request": "launch",
  "program": "${workspaceFolder}/bin/godot.windows.editor.dev.x86_64.exe",
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "args": [ "--editor", "--path", "path-to-your-godot-project-folder" ],
  "stopAtEntry": false,
  "cwd": "${workspaceFolder}",
  "environment": [],
  "console": "internalConsole",
  "visualizerFile": "${workspaceFolder}/platform/windows/godot.natvis",
  "preLaunchTask": "build"
}

{
  "name": "Launch Project",
  "type": "lldb",
  "request": "custom",
  "targetCreateCommands": [
    "target create ${workspaceFolder}/bin/godot.macos.editor.dev.x86_64"
  ],
  // Change the arguments below for the project you want to test with.
  // To run the project instead of editing it, remove the "--editor" argument.
  "processCreateCommands": [
    "process launch -- --editor --path path-to-your-godot-project-folder"
  ]
}

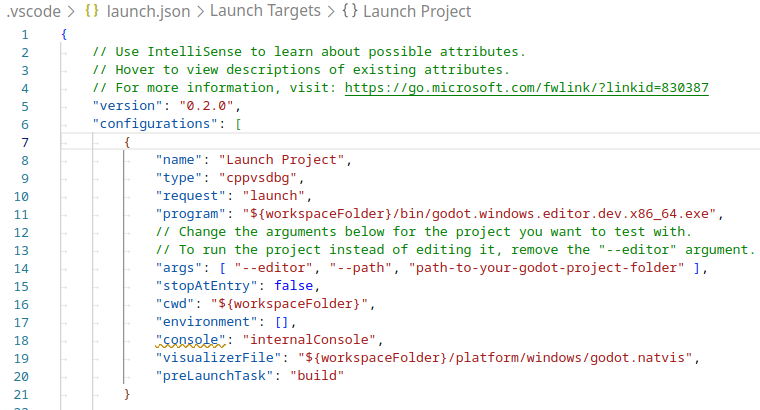

../../../_images/vscode_2_launch.json.png — An example of a filled out `launch.json`.

Примечание

Due to sporadic performance issues, it is recommended to use LLDB over GDB on Unix-based systems. Make sure that the CodeLLDB extension is installed.

If you encounter issues with lldb, you may consider using gdb (see the LinuxBSD_gdb configuration).

Do note that lldb may work better with LLVM-based builds. See Compiling for Linux, *BSD for further information.

The name under program depends on your build configuration, e.g. godot.linuxbsd.editor.dev.x86_64 for 64-bit LinuxBSD platform with target=editor and dev_build=yes.

Configuring Intellisense

For the C/C++ extension:

To fix include errors you may be having, you need to configure some settings in the c_cpp_properties.json file.

First, make sure to build the project since some files need to be generated.
Edit the C/C++ Configuration file either with the UI or with text:

../../../_images/vscode_edit_configurations.webp

Add an include path for your platform, for example, ${workspaceFolder}/platform/windows.
Add defines for the editor TOOLS_ENABLED, debug builds DEBUG_ENABLED, and tests TESTS_ENABLED.
Make sure the compiler path is configured correctly to the compiler you are using. See Введение в систему сборки for further information on your platform.

The c_cpp_properties.json file should look similar to this for Windows:

.vscode/c_cpp_properties.json

{
  "configurations": [
    {
      "name": "Win32",
      "includePath": [
        "${workspaceFolder}/**",
        "${workspaceFolder}/platform/windows"
      ],
      "defines": [
        "_DEBUG",
        "UNICODE",
        "_UNICODE",
        "TOOLS_ENABLED",
        "DEBUG_ENABLED",
        "TESTS_ENABLED"
      ],
      "windowsSdkVersion": "10.0.22621.0",
      "compilerPath": "C:/Program Files/Microsoft Visual Studio/2022/Community/VC/Tools/MSVC/14.39.33519/bin/Hostx64/x64/cl.exe",
      "cStandard": "c17",
      "cppStandard": "c++17",
      "intelliSenseMode": "windows-msvc-x64"
    }
  ],
  "version": 4
}

Alternatively, you can use the scons argument compiledb=yes and set the compile commands setting compileCommands to compile_commands.json, found in the advanced section of the C/C++ Configuration UI.
- This argument can be added to your build task in tasks.json since it will need to be run whenever files are added or moved.

Если у вас возникнут какие-либо проблемы, обратитесь за помощью в один из каналов сообщества Godot.

Совет

To get linting on class reference XML files, install the vscode-xml extension.
