Kompilieren für MacOS

Bemerkung

Diese Seite beschreibt, wie man den macOS-Editor und die Exportvorlagen-Binärdateien aus dem Quellcode kompiliert . Wenn Sie Ihr Projekt stattdessen nach macOS exportieren möchten, lesen Sie Exportieren für macOS.

Anforderungen

Zum Kompilieren unter MacOS ist Folgendes erforderlich:

  • Python 3.9+.

  • SCons 4.4+ build system.

  • Xcode (oder die leichtgewichtigeren Kommandozeilentools für Xcode).

  • Vulkan SDK for MoltenVK (macOS doesn't support Vulkan out of the box). The latest Vulkan SDK version can be installed quickly by running misc/scripts/install_vulkan_sdk_macos.sh within the Godot source repository.

Bemerkung

If you have Homebrew installed, you can easily install SCons using the following command:

brew install scons

Bei der Installation von Homebrew werden auch automatisch die Kommandozeilen-Tools für Xcode installiert, falls Sie diese noch nicht haben.

Ähnlich wenn Sie MacPorts installiert haben, können Sie SCons einfach mit dem folgenden Befehl installieren:

sudo port install scons

Siehe auch

Um den Godot-Quellcode zum Kompilieren zu erhalten, siehe Beschaffung des Quellcodes.

Eine allgemeine Übersicht über die Verwendung von SCons für Godot finden Sie unter Einführung in das Buildsystem.

Kompilieren

Starten Sie ein Terminal und wechseln Sie in das Stammverzeichnis des Engine-Quellcodes.

Zum Kompilieren für Intel (x86-64) betriebene Macs verwenden Sie:

scons platform=macos arch=x86_64

Um für Apple Silicon (ARM64) betriebene Macs zu kompilieren, verwenden Sie:

scons platform=macos arch=arm64

Tipp

If you are compiling Godot to make changes or contribute to the engine, you may want to use the SCons options dev_build=yes or dev_mode=yes. See Aliasnamen für Entwicklung und Produktion for more info.

Wenn alles gut geht, wird die resultierende ausführbare Binärdatei im Unterverzeichnis bin/ abgelegt. Diese ausführbare Datei enthält die gesamte Engine und läuft ohne jegliche Abhängigkeiten. Wenn Sie sie ausführen, wird der Projektmanager angezeigt.

Bemerkung

Using a standalone editor executable is not recommended, it should be always packaged into a .app bundle to avoid UI activation issues.

Bemerkung

Wenn Sie getrennte Editoreinstellungen für Ihre eigenen Godot-Builds und die offiziellen Releases verwenden wollen, können Sie den Portabler Modus aktivieren, indem Sie eine Datei namens ._sc_ oder _sc_ im bin/-Ordner anlegen.

Compiling with AccessKit support

AccessKit provides support for screen readers.

Compiling with AccessKit requires additional dependencies to be installed. If you wish to skip this step, you can use the accesskit=no SCons option.

You can install the required dependencies by running python misc/scripts/install_accesskit.py in the Godot source repository. After running this script, compile Godot as usual.

Bemerkung

You can optionally build the godot-accesskit-static libraries yourself with the following steps:

  1. Clone the godot-accesskit-c-static directory and navigate to it.

  2. Run the following command:

cd accesskit-c
cmake -S . -B build -DCMAKE_BUILD_TYPE=Release
cmake --build build
cmake --install build

The AccessKit static library should be built using the same compiler you are using for building Godot.

To compile Godot with a custom build of AccessKit, add accesskit_sdk_path={path} to tell SCons where to look for the AccessKit libraries:

scons platform=macos accesskit_sdk_path=<...>

Kompilieren mit ANGLE-Unterstützung

ANGLE provides a translation layer from OpenGL ES 3.x to Metal and can be used to improve support for the Compatibility renderer on some older GPUs with outdated OpenGL drivers.

Compiling with ANGLE requires additional dependencies to be installed. If you wish to skip this step, you can use the angle=no SCons option.

You can install the required dependencies by running python misc/scripts/install_angle.py in the Godot source repository. After running this script, compile Godot as usual.

Bemerkung

Optional können Sie die godot-angle-static-Bibliotheken mit den folgenden Schritten selbst erstellen:

  1. Klonen Sie das Verzeichnis godot-angle-static und navigieren Sie zu diesem Verzeichnis.

  2. Run the following command:

git submodule update --init
./update_angle.sh
scons

You can also specify the build architecture using arch={architecture}.

The ANGLE static library should be built using the same compiler you are using for building Godot.

To compile Godot with a custom build of ANGLE, add angle_libs={path} to tell SCons where to look for the ANGLE libraries:

scons platform=macos angle_libs=<...>

Automatic .app bundle creation

To automatically create a .app bundle like in the official builds, use the generate_bundle=yes option on the last SCons command used to build editor:

scons platform=macos arch=x86_64
scons platform=macos arch=arm64 generate_bundle=yes

Manual .app bundle creation

To support both architectures in a single "Universal 2" binary, run the above two commands and then use lipo to bundle them together:

lipo -create bin/godot.macos.editor.x86_64 bin/godot.macos.editor.arm64 -output bin/godot.macos.editor.universal

To create a .app bundle, you need to use the template located in misc/dist/macos_tools.app. Typically, for an optimized editor binary built with dev_build=yes:

cp -r misc/dist/macos_tools.app ./bin/Godot.app
mkdir -p bin/Godot.app/Contents/MacOS
cp bin/godot.macos.editor.universal bin/Godot.app/Contents/MacOS/Godot
chmod +x bin/Godot.app/Contents/MacOS/Godot
codesign --force --timestamp --options=runtime --entitlements misc/dist/macos/editor.entitlements -s - bin/Godot.app

Bemerkung

If you are building the master branch, you also need to include support for the MoltenVK Vulkan portability library. By default, it will be linked statically from your installation of the Vulkan SDK for macOS. You can also choose to link it dynamically by passing use_volk=yes and including the dynamic library in your .app bundle:

mkdir -p <Godot bundle name>.app/Contents/Frameworks
cp <Vulkan SDK path>/macOS/lib/libMoltenVK.dylib <Godot bundle name>.app/Contents/Frameworks/libMoltenVK.dylib

Ausführen eines Headless/Server-Builds

To run in headless mode which provides editor functionality to export projects in an automated manner, use the normal build:

scons platform=macos target=editor

And then use the --headless command line argument:

./bin/godot.macos.editor.x86_64 --headless

To compile a debug server build which can be used with remote debugging tools, use:

scons platform=macos target=template_debug

To compile a release server build which is optimized to run dedicated game servers, use:

scons platform=macos target=template_release production=yes

Exportvorlagen erstellen

Um macOS-Exportvorlagen zu erstellen, müssen Sie die Targets ohne den Editor kompilieren: target=template_release (Release-Vorlage) und target=template_debug.

Official templates are Universal 2 binaries which support both ARM64 and Intel x86_64 architectures.

  • To support ARM64 (Apple Silicon) + Intel x86_64:

    scons platform=macos target=template_debug arch=arm64
scons platform=macos target=template_release arch=arm64
scons platform=macos target=template_debug arch=x86_64
scons platform=macos target=template_release arch=x86_64 generate_bundle=yes

  • To support ARM64 (Apple Silicon) only (smaller file size, but less compatible with older hardware):

    scons platform=macos target=template_debug arch=arm64
scons platform=macos target=template_release arch=arm64 generate_bundle=yes

To create a .app bundle like in the official builds, you need to use the template located in misc/dist/macos_template.app. This process can be automated by using the generate_bundle=yes option on the last SCons command used to build export templates (so that all binaries can be included). This will create a godot_macos.zip file in bin/ and additionally takes care of calling lipo to create a Universal 2 binary from two separate ARM64 and x86_64 binaries (if both were compiled beforehand).

Bemerkung

You also need to include support for the MoltenVK Vulkan portability library. By default, it will be linked statically from your installation of the Vulkan SDK for macOS. You can also choose to link it dynamically by passing use_volk=yes and including the dynamic library in your .app bundle:

mkdir -p macos_template.app/Contents/Frameworks
cp <Vulkan SDK path>/macOS/libs/libMoltenVK.dylib macos_template.app/Contents/Frameworks/libMoltenVK.dylib

In most cases, static linking should be preferred as it makes distribution easier. The main upside of dynamic linking is that it allows updating MoltenVK without having to recompile export templates.

If you created the .app manually, you can zip the macos_template.app folder to reproduce the macos.zip template from the official Godot distribution:

zip -r9 macos.zip macos_template.app

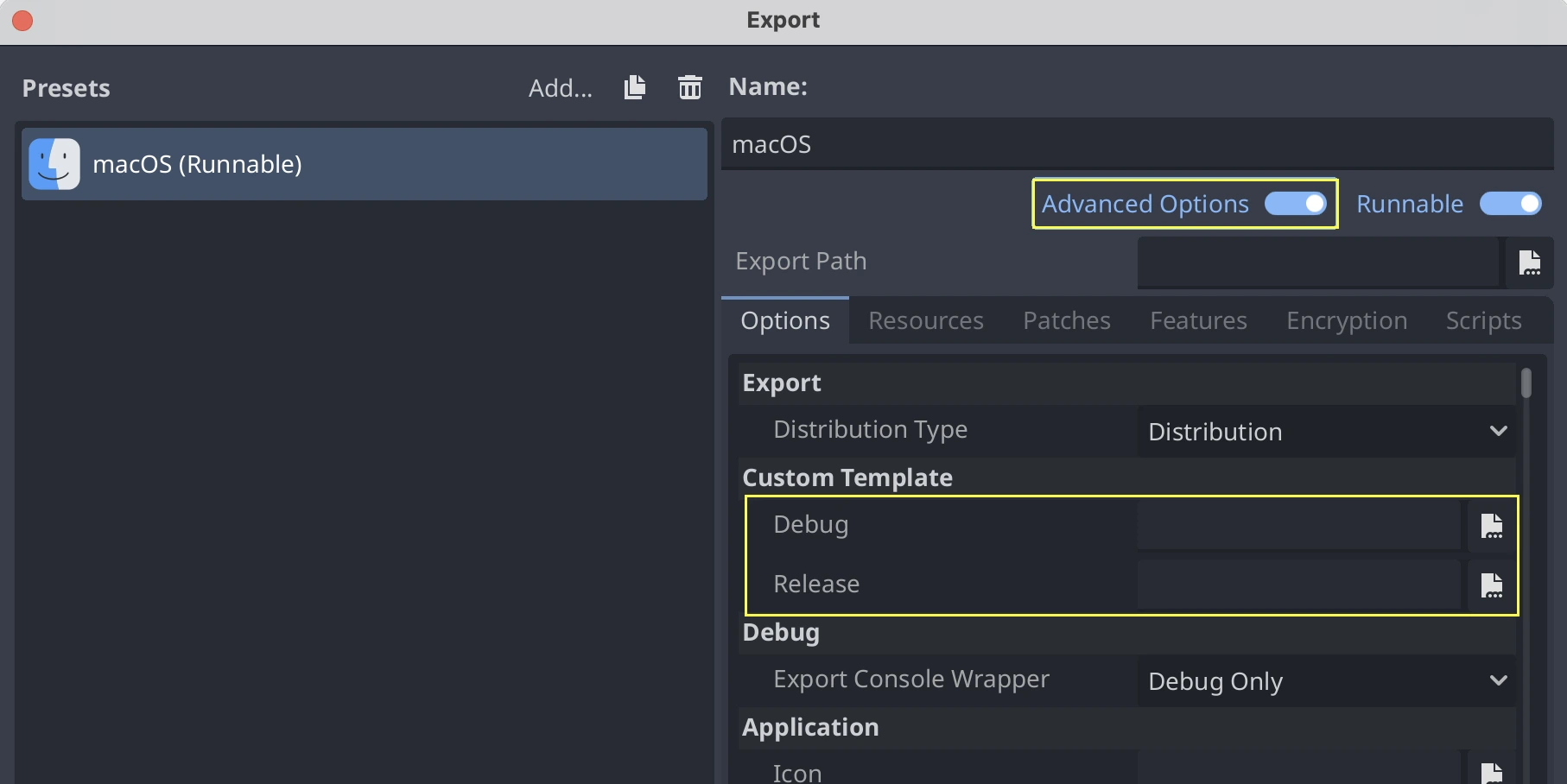

To use your custom export templates, you can select the godot_macos.zip file in the advanced options of your export presets:

../../../_images/mactemplates.webp

Alternatively, if you want all your presets to use your custom export template, you can rename the godot_macos.zip file to macos.zip and move it to the default location for export templates:

::

~/Library/Application Support/Godot/export_templates/<GODOT_VERSION>/macos.zip

Cross-Kompilieren für MacOS unter Linux

Es ist möglich, für macOS in einer Linux-Umgebung zu kompilieren (und vielleicht auch in Windows unter Verwendung des Windows-Subsystems für Linux). Dazu müssen Sie OSXCross installieren, um macOS als Target verwenden zu können. Folgen Sie zunächst den Anweisungen, um es zu installieren:

Clone the OSXCross repository somewhere on your machine (or download a ZIP file and extract it somewhere), e.g.:

git clone --depth=1 https://github.com/tpoechtrager/osxcross.git "$HOME/osxcross"

  1. Befolgen Sie die Anweisungen zum Packen des SDK: https://github.com/tpoechtrager/osxcross#packaging-the-sdk

  2. Befolgen Sie die Anweisungen zum Installieren von OSXCross: https://github.com/tpoechtrager/osxcross#installation

After that, you will need to define the OSXCROSS_ROOT as the path to the OSXCross installation (the same place where you cloned the repository/extracted the zip), e.g.:

export OSXCROSS_ROOT="$HOME/osxcross"

Now you can compile with SCons like you normally would:

scons platform=macos

If you have an OSXCross SDK version different from the one expected by the SCons buildsystem, you can specify a custom one with the osxcross_sdk argument:

scons platform=macos osxcross_sdk=darwin15

Fehlersuche

Fatal error: 'cstdint' file not found

If you get a compilation error of this form early on, it's likely because the Xcode command line tools installation needs to be repaired after a macOS or Xcode update:

./core/typedefs.h:45:10: fatal error: 'cstdint' file not found
45 | #include <cstdint>
   |          ^~~~~~~~~

Run these two commands to reinstall Xcode command line tools (enter your administrator password as needed):

sudo rm -rf /Library/Developer/CommandLineTools
sudo xcode-select --install

If it still does not work, try updating Xcode from the Mac App Store and try again.
