Utilisation du ArrayMesh
Ce tutoriel présente les bases de l'utilisation d'un ArrayMesh.
To do so, we will use the function add_surface_from_arrays(), which takes up to five parameters. The first two are required, while the last three are optional.
Le premier est le PrimitiveType
, c'est un concept OpenGL qui indique au GPU comment arranger la primitive en fonction des sommets donnés, qu'il s'agisse de triangles, de lignes, de points, etc. Voir Mesh.PrimitiveType pour les options disponibles.
Le deuxième paramètre, arrays
, est le véritable Array qui stocke les informations de maillage. Le tableau est un tableau Godot normal qui est construit avec des crochets vides []
. Il stocke un Packed**Array
(par exemple, PackedVector3Array, PackedInt32Array, etc.) pour chaque type d'informations qui seront utilisées pour construire la surface.
Common elements of arrays
are listed below, together with the position they must have within arrays
.
See Mesh.ArrayType for a full list.
Index |
Mesh.ArrayType Enum |
Type de tableau (array) |
---|---|---|
0 |
|
|
1 |
|
|
2 |
|
PackedFloat32Array ou PackedFloat64Array en groupe de 4 flottants. Les trois premiers flottants déterminent la tangente, et le dernier flottant la direction binormale en -1 ou 1. |
3 |
|
|
4 |
|
|
5 |
|
|
10 |
|
PackedFloat32Array en groupes de 4 flottants ou PackedInt32Array en groupes de 4 entiers. Chaque groupe énumère les index des 4 os qui affectent un sommet donné. |
11 |
|
PackedFloat32Array ou PackedFloat64Array en groupes de 4 flottants. Chaque flottant liste la quantité de poids que l'os correspondant dans |
12 |
|

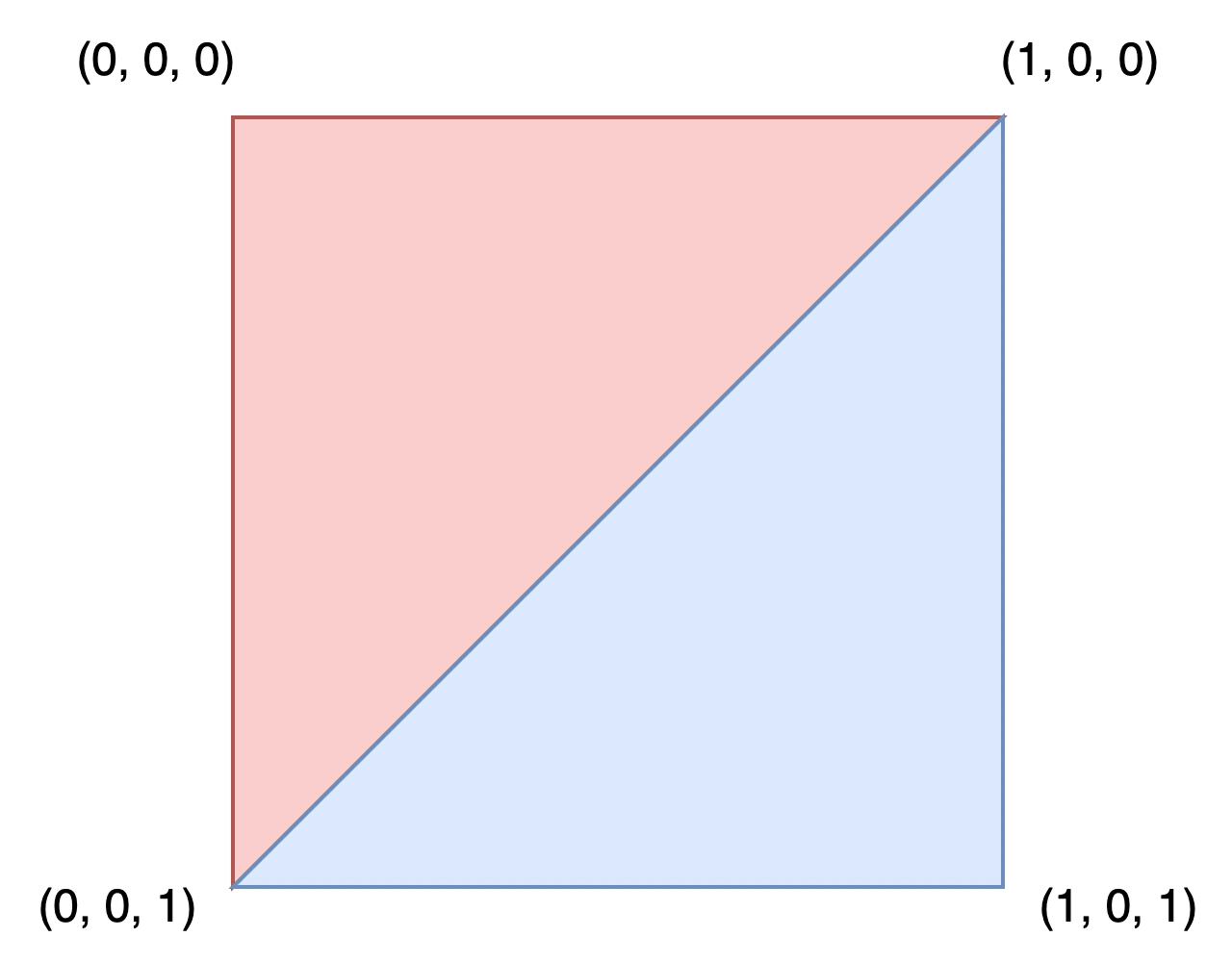

In most cases when creating a mesh, we define it by its vertex positions. So usually, the array of vertices (at index 0) is required, while the index array (at index 12) is optional and will only be used if included. It is also possible to create a mesh with only the index array and no vertex array, but that's beyond the scope of this tutorial.
All the other arrays carry information about the vertices. They are optional and will only be used if included. Some of these arrays (e.g. ARRAY_COLOR
)
use one entry per vertex to provide extra information about vertices. They must have the same size as the vertex array. Other arrays (e.g. ARRAY_TANGENT
) use
four entries to describe a single vertex. These must be exactly four times larger than the vertex array.
For normal usage, the last three parameters in add_surface_from_arrays() are typically left empty.
Setting up the ArrayMesh
In the editor, create a MeshInstance3D and add an ArrayMesh to it in the Inspector. Normally, adding an ArrayMesh in the editor is not useful, but in this case it allows us to access the ArrayMesh from code without creating one.
Ensuite, ajoutez un script au MeshInstance3D.
Sous _ready()
, créez un nouvel Array.
var surface_array = []
Godot.Collections.Array surfaceArray = [];
Ce sera le tableau dans lequel nous conserverons nos informations de surface, il contiendra tous les tableaux de données dont la surface a besoin. Godot s'attendra à ce qu'il soit de taille Mesh.ARRAY_MAX
, alors redimensionnez-le en conséquence.
var surface_array = []
surface_array.resize(Mesh.ARRAY_MAX)
Godot.Collections.Array surfaceArray = [];
surfaceArray.Resize((int)Mesh.ArrayType.Max);
Créez ensuite les arrays pour chaque type de données que vous utiliserez.
var verts = PackedVector3Array()
var uvs = PackedVector2Array()
var normals = PackedVector3Array()
var indices = PackedInt32Array()
List<Vector3> verts = [];
List<Vector2> uvs = [];
List<Vector3> normals = [];
List<int> indices = [];
Une fois que vous avez rempli vos arrays de données avec votre géométrie, vous pouvez créer un maillage en ajoutant chaque array à surface_array
, puis en validant le maillage.
surface_array[Mesh.ARRAY_VERTEX] = verts
surface_array[Mesh.ARRAY_TEX_UV] = uvs
surface_array[Mesh.ARRAY_NORMAL] = normals
surface_array[Mesh.ARRAY_INDEX] = indices
# No blendshapes, lods, or compression used.
mesh.add_surface_from_arrays(Mesh.PRIMITIVE_TRIANGLES, surface_array)
surfaceArray[(int)Mesh.ArrayType.Vertex] = verts.ToArray();
surfaceArray[(int)Mesh.ArrayType.TexUV] = uvs.ToArray();
surfaceArray[(int)Mesh.ArrayType.Normal] = normals.ToArray();
surfaceArray[(int)Mesh.ArrayType.Index] = indices.ToArray();
var arrMesh = Mesh as ArrayMesh;
if (arrMesh != null)
{
// No blendshapes, lods, or compression used.
arrMesh.AddSurfaceFromArrays(Mesh.PrimitiveType.Triangles, surfaceArray);
}
Note
Dans cet exemple, nous avons utilisé Mesh.PRIMITIVE_TRIANGLES
, mais vous pouvez utiliser n'importe quel type primitif disponible à partir de mesh.
Mis ensemble, le code complet ressemble à ceci :
extends MeshInstance3D
func _ready():
var surface_array = []
surface_array.resize(Mesh.ARRAY_MAX)
# PackedVector**Arrays for mesh construction.
var verts = PackedVector3Array()
var uvs = PackedVector2Array()
var normals = PackedVector3Array()
var indices = PackedInt32Array()
#######################################
## Insert code here to generate mesh ##
#######################################
# Assign arrays to surface array.
surface_array[Mesh.ARRAY_VERTEX] = verts
surface_array[Mesh.ARRAY_TEX_UV] = uvs
surface_array[Mesh.ARRAY_NORMAL] = normals
surface_array[Mesh.ARRAY_INDEX] = indices
# Create mesh surface from mesh array.
# No blendshapes, lods, or compression used.
mesh.add_surface_from_arrays(Mesh.PRIMITIVE_TRIANGLES, surface_array)
public partial class MyMeshInstance3D : MeshInstance3D
{
public override void _Ready()
{
Godot.Collections.Array surfaceArray = [];
surfaceArray.Resize((int)Mesh.ArrayType.Max);
// C# arrays cannot be resized or expanded, so use Lists to create geometry.
List<Vector3> verts = [];
List<Vector2> uvs = [];
List<Vector3> normals = [];
List<int> indices = [];
/***********************************
* Insert code here to generate mesh.
* *********************************/
// Convert Lists to arrays and assign to surface array
surfaceArray[(int)Mesh.ArrayType.Vertex] = verts.ToArray();
surfaceArray[(int)Mesh.ArrayType.TexUV] = uvs.ToArray();
surfaceArray[(int)Mesh.ArrayType.Normal] = normals.ToArray();
surfaceArray[(int)Mesh.ArrayType.Index] = indices.ToArray();
var arrMesh = Mesh as ArrayMesh;
if (arrMesh != null)
{
// Create mesh surface from mesh array
// No blendshapes, lods, or compression used.
arrMesh.AddSurfaceFromArrays(Mesh.PrimitiveType.Triangles, surfaceArray);
}
}
}
Le code qui va au milieu peut être ce que vous voulez. Ci-dessous, nous présenterons un exemple de code pour générer une sphère.
Génération de la géométrie
Voici un exemple de code pour générer une sphère. Bien que le code soit présenté en GDScript, il n'y a rien de spécifique à Godot dans l'approche de sa génération. Cette implémentation n'a rien de particulier à voir avec ArrayMeshes et n'est qu'une approche générique pour générer une sphère. Si vous avez du mal à comprendre ou si vous souhaitez en savoir plus sur la géométrie procédurale en général, vous pouvez utiliser n'importe quel tutoriel que vous trouverez en ligne.
extends MeshInstance3D
var rings = 50
var radial_segments = 50
var radius = 1
func _ready():
# Insert setting up the PackedVector**Arrays here.
# Vertex indices.
var thisrow = 0
var prevrow = 0
var point = 0
# Loop over rings.
for i in range(rings + 1):
var v = float(i) / rings
var w = sin(PI * v)
var y = cos(PI * v)
# Loop over segments in ring.
for j in range(radial_segments + 1):
var u = float(j) / radial_segments
var x = sin(u * PI * 2.0)
var z = cos(u * PI * 2.0)
var vert = Vector3(x * radius * w, y * radius, z * radius * w)
verts.append(vert)
normals.append(vert.normalized())
uvs.append(Vector2(u, v))
point += 1
# Create triangles in ring using indices.
if i > 0 and j > 0:
indices.append(prevrow + j - 1)
indices.append(prevrow + j)
indices.append(thisrow + j - 1)
indices.append(prevrow + j)
indices.append(thisrow + j)
indices.append(thisrow + j - 1)
prevrow = thisrow
thisrow = point
# Insert committing to the ArrayMesh here.
public partial class MyMeshInstance3D : MeshInstance3D
{
private int _rings = 50;
private int _radialSegments = 50;
private float _radius = 1;
public override void _Ready()
{
// Insert setting up the surface array and lists here.
// Vertex indices.
var thisRow = 0;
var prevRow = 0;
var point = 0;
// Loop over rings.
for (var i = 0; i < _rings + 1; i++)
{
var v = ((float)i) / _rings;
var w = Mathf.Sin(Mathf.Pi * v);
var y = Mathf.Cos(Mathf.Pi * v);
// Loop over segments in ring.
for (var j = 0; j < _radialSegments + 1; j++)
{
var u = ((float)j) / _radialSegments;
var x = Mathf.Sin(u * Mathf.Pi * 2);
var z = Mathf.Cos(u * Mathf.Pi * 2);
var vert = new Vector3(x * _radius * w, y * _radius, z * _radius * w);
verts.Add(vert);
normals.Add(vert.Normalized());
uvs.Add(new Vector2(u, v));
point += 1;
// Create triangles in ring using indices.
if (i > 0 && j > 0)
{
indices.Add(prevRow + j - 1);
indices.Add(prevRow + j);
indices.Add(thisRow + j - 1);
indices.Add(prevRow + j);
indices.Add(thisRow + j);
indices.Add(thisRow + j - 1);
}
}
prevRow = thisRow;
thisRow = point;
}
// Insert committing to the ArrayMesh here.
}
}
Enregistrer
Enfin, nous pouvons sauvegarder l'ArrayMesh en utilisant la classe ResourceSaver. Ceci est utile lorsque vous souhaitez générer un maillage, puis l'utiliser plus tard sans avoir à le générer de nouveau.
# Saves mesh to a .tres file with compression enabled.
ResourceSaver.save(mesh, "res://sphere.tres", ResourceSaver.FLAG_COMPRESS)
// Saves mesh to a .tres file with compression enabled.
ResourceSaver.Save(Mesh, "res://sphere.tres", ResourceSaver.SaverFlags.Compress);
