Process material properties

Min, max, and curve properties

Las propiedades de este material controlan cómo se comportan las partículas y cómo cambian a lo largo de su vida útil. Muchas de ellas tienen valores Min, Max y Curve que permiten afinar su comportamiento. La relación entre estos valores es la siguiente: cuando se genera una partícula, la propiedad se establece con un valor aleatorio entre Min y Max. Si Min y Max son iguales, el valor siempre será el mismo para todas las partículas. Si también se establece la Curve, el valor de la propiedad se multiplicará por el valor de la curva en el punto actual de la vida útil de una partícula. Utiliza la curva para cambiar una propiedad a lo largo de la vida útil de la partícula. De esta manera se puede expresar un comportamiento muy complejo.

Nota

This page covers how to use ParticleProcessMaterial for 3D scenes specifically. For information on how to use it in a 2D Scene see ParticleProcessMaterial 2D Usage.

Time

La propiedad Lifetime Randomness controla cuánto grado de aleatoriedad se aplica a la duración de vida de cada partícula. Un valor de 0 significa que no hay ninguna aleatoriedad y que todas las partículas vivirán exactamente el mismo tiempo, según lo definido por la propiedad Lifetime. Un valor de 1 indica que la duración de vida de una partícula será completamente aleatoria dentro del rango [0.0, Lifetime].

Particle flags

The Align Y property aligns each particle's Y-axis with its velocity. Enabling this property is the same as setting the Transform Align property to Y to Velocity.

The Rotate Y property works with the properties in the Angle and Angular Velocity groups to control particle rotation. Rotate Y has to be enabled if you want to apply any rotation to particles. The exception to this is any particle that uses the Standard Material where the Billboard property is set to Particle Billboard. In that case, particles rotate even without Rotate Y enabled.

When the Disable Z property is enabled, particles will not move along the Z-axis. Whether that is going to be the particle system's local Z-axis or the world Z-axis is determined by the Local Coords property.

The Damping as Friction property changes the behavior of damping from a constant deceleration to a deceleration based on speed.

Emisión (Spawn)

Emission shape

Particles can emit from a single point in space or in a way that they fill out a shape. The Shape property controls that shape. Point is the default value. All particles emit from a single point in the center of the particle system. When set to Sphere or Box, particles emit in a way that they fill out a sphere or a box shape evenly. You have full control over the size of these shapes. Sphere Surface works like Sphere, but instead of filling it out, all particles spawn on the sphere's surface.

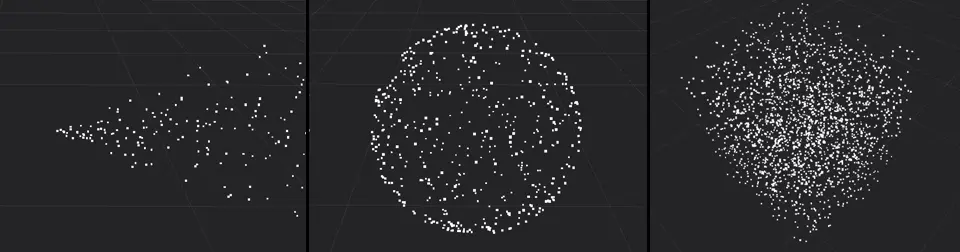

Particles emitting from a point (left), in a sphere (middle), and in a box (right)

A ring-shaped particle system

The Ring emission shape makes particles emit in the shape of a ring. You can control the ring's direction by changing the Ring Axis property. Ring Height controls the thickness of the ring along its axis. Ring Radius and Ring Inner Radius control how wide the ring is and how large the hole in the middle should be. The image shows a particle system with a radius of 2 and an inner radius of 1.5, the axis points along the global Z-axis.

In addition to these relatively simple shapes, you can select the Points or Directed Points option to create highly complex emission shapes. See the Complex emission shapes section for a detailed explanation of how to set these up.

Angle (Ángulo)

The Angle property controls a particle's starting rotation as described above. In order to have an actual effect on the particle, you have to enable one of two properties: Rotate Y rotates the particle around the particle system's Y-axis. The Billboard property in the Standard Material, if it is set to Particle Billboard, rotates the particle around the axis that points from the particle to the camera.

Dirección

Nota

The Direction property alone is not enough to see any particle movement. Whatever values you set here only take effect once velocity or acceleration properties are set, too.

The Direction property is a vector that controls each particle's direction of movement at the moment it is spawned. A value of (X=1,Y=0,Z=0) would make all particles move sideways along the X-axis. For something like a fountain where particles shoot out up in the air, a value of (X=0,Y=1,Z=0) would be a good starting point.

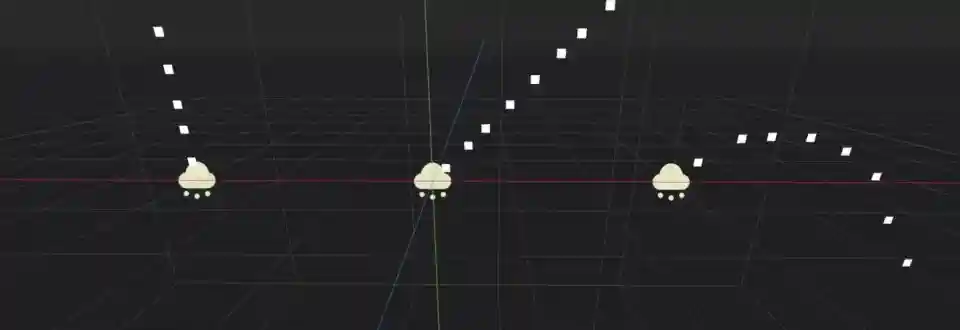

Different direction values: Y-axis only (left), equal values for X and Y (middle), X and Y with gravity enabled (right)

After setting a direction, you will notice that all particles move in the same direction in a straight line. The Spread property adds some variation and randomness to each particle's direction. The higher the value, the stronger the deviation from the original path. A value of 0 means there is no spread at all while a value of 180 makes particles shoot out in every direction. You could use this for something like pieces of debris during an explosion effect.

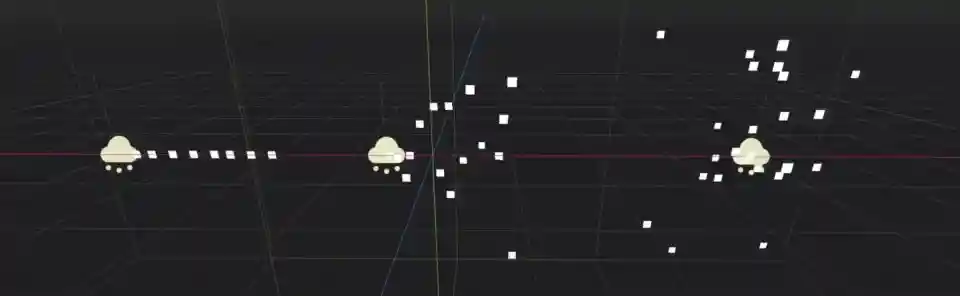

No spread (left), 45 degree angle (middle), full 180 degrees (right)

The Flatness property limits the spread along the Y-axis. A value of 0 means there is no limit and a value of 1 will eliminate all particle movement along the Y-axis. The particles will spread out completely "flat".

You won't see any actual movement until you also set some values for the velocity and acceleration properties below, so let's take a look at those next.

Initial velocity

While the Direction property controls a particle's movement direction, the Initial Velocity controls how fast it goes. It's separated into Velocity Min and Velocity Max, both set to 0 by default, which is why you don't see any movement initially. As soon as you set values for either of these properties as described above, the particles begin to move. The direction is multiplied by these values, so you can make particles move in the opposite direction by setting a negative velocity.

Accelerations

Gravity (Gravedad)

The next few property groups work closely together to control particle movement and rotation. Gravity drags particles in the direction it points at, which is straight down at the strength of Earth's gravity by default. Gravity affects all particle movement. If your game uses physics and the world's gravity can change at runtime, you can use this property to keep the game's gravity in sync with particle gravity. A Gravity value of (X=0,Y=0,Z=0) means no particle will ever move at all if none of the other movement properties are set.

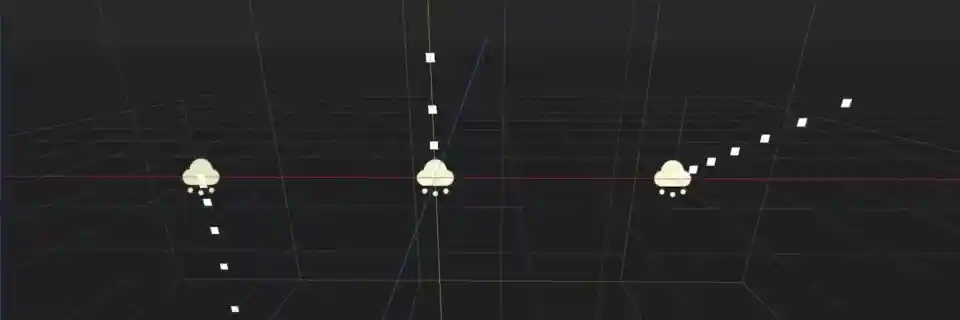

Left: (X=0,Y=-9.8,Z=0), middle: (X=0,Y=9.8,Z=0), right: (X=4,Y=2,Z=0).

Angular velocity

Angular Velocity controls a particle's speed of rotation as described above. You can reverse the direction by using negative numbers for Velocity Min or Velocity Max. Like the Angle property, the rotation will only be visible if the Rotate Y flag is set or the Particle Billboard mode is selected in the Standard Material.

Nota

The Damping property has no effect on the angular velocity.

Linear acceleration

A particle's velocity is a constant value: once it's set, it doesn't change and the particle will always move at the same speed. You can use the Linear Accel property to change the speed of movement over a particle's lifetime as described above. Positive values will speed up the particle and make it move faster. Negative values will slow it down until it stops and starts moving in the other direction.

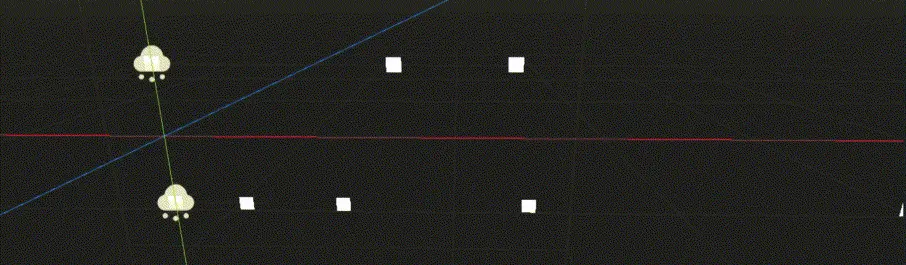

Negative (top) and positive (bottom) linear acceleration

It's important to keep in mind that when we change acceleration, we're not changing the velocity directly, we're changing the change in velocity. A value of 0 on the acceleration curve does not stop the particle's movement, it stops the change in the particle's movement. Whatever its velocity was at that moment, it will keep moving at that velocity until the acceleration is changed again.

Radial acceleration

The Radial Accel property adds a gravity-like force to all particles, with the origin of that force at the particle system's current location. Negative values make particles move towards the center, like the force of gravity from a planet on objects in its orbit. Positive values make particles move away from the center.

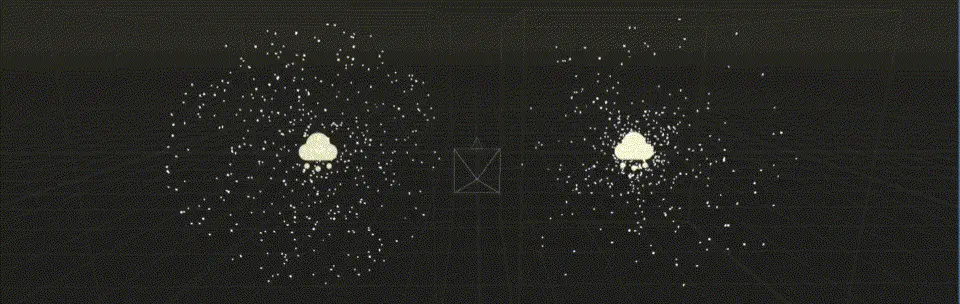

Negative (left) and positive (right) radial acceleration

Tangential acceleration

Tangentes en un círculo

This property adds particle acceleration in the direction of the tangent to a circle on the particle system's XZ-plane with the origin at the system's center and a radius the distance between each particle's current location and the system's center projected onto that plane.

Let's unpack that.

A tangent to a circle is a straight line that "touches" the circle in a right angle to the circle's radius at the touch point. A circle on the particle system's XZ-plane is the circle that you see when you look straight down at the particle system from above.

Tangential acceleration from above

Tangential Accel is always limited to that plane and never move particles along the system's Y-axis. A particle's location is enough to define such a circle where the distance to the system's center is the radius if we ignore the vector's Y component.

The Tangential Accel property will make particles orbit the particle system's center, but the radius will increase constantly. Viewed from above, particles will move away from the center in a spiral. Negative values reverse the direction.

Damping (Amortiguación)

The Damping property gradually stops all movement. Each frame, a particle's movement is slowed down a little unless the total acceleration is greater than the damping effect. If it isn't, the particle will keep slowing down until it doesn't move at all. The greater the value, the less time it takes to bring particles to a complete halt.

Attractor interaction

If you want the particle system to interact with particle attractors, you have to check the Enabled property. When it is disabled, the particle system ignores all particle attractors.

Visualización

Escala

Scale controls a particle's size as described above. You can set different values for Scale Min and Scale Max to randomize each particle's size. Negative values are not allowed, so you won't be able to flip particles with this property. If you emit particles as billboards, the Keep Size property on the Standard Material in your draw passes has to be enabled for any scaling to have an effect.

Color

The Color property controls a particle's initial color. It will have an effect only after the Use As Albedo property in the Vertex Color group of the Standard Material is enabled. This property is multiplied with color coming from the particle material's own Color or Texture property.

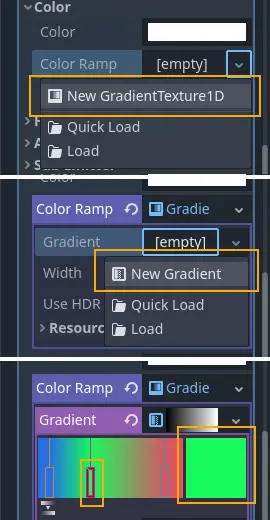

Setting up a color ramp

There are two Ramp properties in the Color group. These allow you to define a range of colors that are used to set the particle's color. The Color Ramp property changes a particle's color over the course of its lifetime. It moves through the entire range of colors you defined. The Color Initial Ramp property selects the particle's initial color from a random position on the color ramp.

Para configurar una rampa de color, haz clic en el cuadro junto al nombre de la propiedad y, en el menú desplegable, selecciona New GradientTexture1D. Vuelva a hacer clic en el cuadro para abrir los detalles de la textura. Busque la propiedad Gradient, haz clic en el cuadro junto a ella y selecciona New Gradient. Vuelva a hacer clic en ese cuadro y verá un rango de colores. Haz clic en cualquier parte de ese rango para insertar un nuevo marcador. Puedes mover el marcador con el ratón y eliminarlo haciendo clic con el botón derecho. Cuando se selecciona un marcador, puedes usar el selector de color junto al rango para cambiar su color.

Hue variation

Like the Color property, Hue Variation controls a particle's color, but in a different way. It does so not by setting color values directly, but by shifting the color's hue.

Hue describes a color's pigment: red, orange, yellow, green and so on. It does not tell you anything about how bright or how saturated the color is. The Hue Variation property controls the range of available hues as described above.

It works on top of the particle's current color. The values you set for Variation Min and Variation Max control how far the hue is allowed to shift in either direction. A higher value leads to more color variation while a low value limits the available colors to the closest neighbors of the original color.

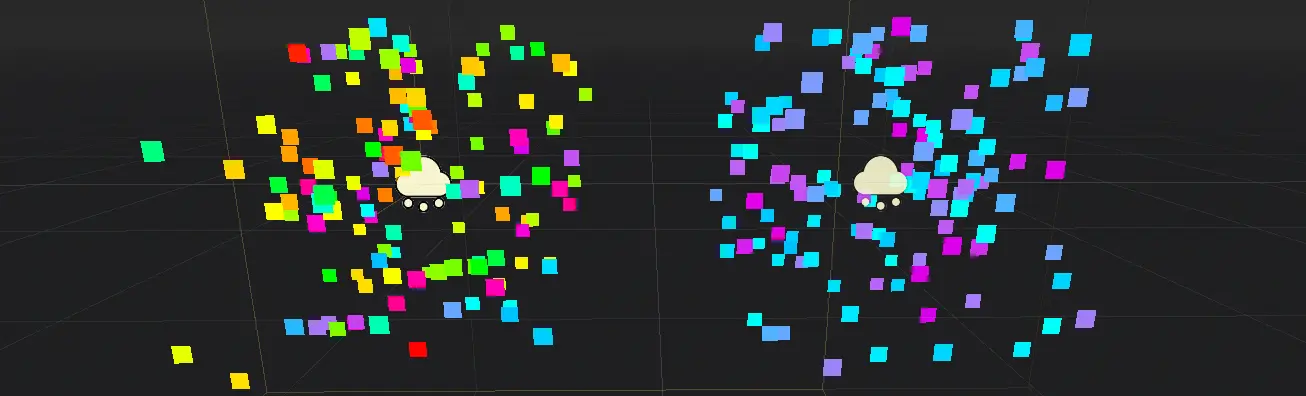

Different values for hue variation, both times with blue as base color: 0.6 (left) and 0.1 (right)

Animación

The Animation property group controls the behavior of sprite sheet animations in the particle's Standard Material. The Min, Max, and Curve values work as described above.

An animated sprite sheet is a texture that contains several smaller images aligned on a grid. The images are shown one after the other so fast that they combine to play a short animation, like a flipbook. You can use them for animated particles like smoke or fire. These are the steps to create an animated particle system:

An 8x8 animated smoke sprite sheet

1. Import a sprite sheet texture into the engine. If you don't have one at hand, you can download the high-res version of the example image.

2. Set up a particle system with at least one draw pass and assign a Standard Material to the mesh in that draw pass.

3. Assign the sprite sheet to the Texture property in the Albedo group

4. Set the material's Billboard property to Particle Billboard. Doing so makes the Particles Anim group available in the material.

5. Set H Frames to the number of columns and V Frames to the number of rows in the sprite sheet.

6. Check Loop if you want the animation to keep repeating.

That's it for the Standard Material. You won't see any animation right away. This is where the Animation properties come in. The Speed properties control how fast the sprite sheet animates. Set Speed Min and Speed Max to 1 and you should see the animation playing. The Offset properties control where the animation starts on a newly spawned particle. By default, it will always be the first image in the sequence. You can add some variety by changing Offset Min and Offset Max to randomize the starting position.

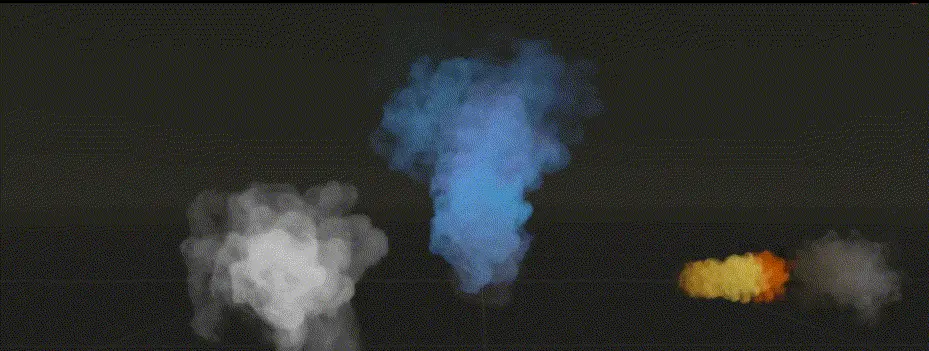

Three different particle systems using the same smoke sprite sheet

Dependiendo de cuántas imágenes contenga su hoja de sprites y de cuánto tiempo esté viva su partícula, es posible que la animación no se vea fluida. La relación entre la vida útil de las partículas, la velocidad de la animación y la cantidad de imágenes en la hoja de sprites es la siguiente:

Nota

A una velocidad de animación de 1.0, la animación llegará a la última imagen de la secuencia justo cuando finalice la vida útil de la partícula.

\[Animación\ FPS = \frac{Número\ de\ imágenes}{Tiempo\ vida\ útil}\]

If your sprite sheet contains 64 (8x8) images and the particle's lifetime is set to 1 second, the animation will be very smooth at 64 FPS (1 second / 64 images). if the lifetime is set to 2 seconds, it will still be fairly smooth at 32 FPS. But if the particle is alive for 8 seconds, the animation will be visibly choppy at 8 FPS. In order to make the animation smooth again, you need to increase the animation speed to something like 3 to reach an acceptable framerate.

The same particle system at different lifetimes: 1 second (left), 2 seconds (middle), 8 seconds (right)

Note that the GPUParticles3D node's Fixed FPS also affects animation playback. For smooth animation playback, it's recommended to set it to 0 so that the particle is simulated on every rendered frame. If this is not an option for your use case, set Fixed FPS to be equal to the effective framerate used by the flipbook animation (see above for the formula).

Turbulence

Turbulence adds noise to particle movement, creating interesting and lively patterns. Check the box next to the Enabled property to activate it. A number of new properties show up that control the movement speed, noise pattern and overall influence on the particle system. You can find a detailed explanation of these in the section on particle turbulence.

Collision

The Mode property controls how and if emitters collide with particle collision nodes. Set it to Disabled to disable any collision for this particle system. Set it to Hide On Contact if you want particles to disappear as soon as they collide. Set it to Constant to make particles collide and bounce around. You will see two new properties appear in the inspector. They control how particles behave during collision events.

A high Friction value will reduce sliding along surfaces. This is especially helpful if particles collide with sloped surfaces and you want them to stay in place instead of sliding all the way to the bottom, like snow falling on a mountain. A high Bounce value will make particles bounce off surfaces they collide with, like rubber balls on a solid floor.

If the Use Scale property is enabled, the collision base size is multiplied by the particle's current scale. You can use this to make sure that the rendered size and the collision size match for particles with random scale or scale that varies over time.

You can learn more about particle collisions in the Collisions section in this manual.

Sub-emitter

The available sub-emitter modes

La propiedad Mode controla cómo y cuándo se generan los subemisores. Establézcala en Disabled y nunca se generarán subemisores. Establézcala en Constant para que los subemisores se generen continuamente a un ritmo constante. La propiedad Frequency controla la frecuencia con la que esto sucede en el lapso de un segundo. Establezca el modo en At End para que el subemisor se genere al final de la vida útil de la partícula principal, justo antes de que se destruya. La propiedad Amount At End controla cuántos subemisores se generarán. Establezca el modo en At Collision para que los subemisores se generen cuando una partícula colisione con el entorno. La propiedad Amount At Collision controla cuántos subemisores se generarán.

When the Keep Velocity property is enabled, the newly spawned sub-emitter starts off with the parent particle's velocity at the time the sub-emitter is created.

See the Sub-emitters section in this manual for a detailed explanation of how to add a sub-emitter to a particle system.
