Interpolación

Interpolation is a common operation in graphics programming, which is used to blend or transition between two values. Interpolation can also be used to smooth movement, rotation, etc. It's good to become familiar with it in order to expand your horizons as a game developer.

La idea básica es que quieres pasar de A a B. Un valor t, representa los estados intermedios.

For example, if t is 0, then the state is A. If t is 1, then the state is B. Anything in-between is an interpolation.

Between two real (floating-point) numbers, an interpolation can be described as:

interpolation = A * (1 - t) + B * t

Y a menudo simplificado:

interpolation = A + (B - A) * t

The name of this type of interpolation, which transforms a value into another at constant speed is "linear". So, when you hear about Linear Interpolation, you know they are referring to this formula.

Hay otros tipos de interpolaciones, que no se tratarán aquí. Una lectura recomendada después es la página Bezier.

Interpolación de vectorial

Vector types (Vector2 and Vector3) can also be interpolated, they come with handy functions to do it Vector2.lerp() and Vector3.lerp().

Para la interpolación cúbica, también hay Vector2.cubic_interpolate() y Vector3.cubic_interpolate(), que hacen una interpolación de estilo Bezier.

Here is example pseudo-code for going from point A to B using interpolation:

var t = 0.0

func _physics_process(delta):
    t += delta * 0.4

    $Sprite2D.position = $A.position.lerp($B.position, t)

private float _t = 0.0f;

public override void _PhysicsProcess(double delta)
{
    _t += (float)delta * 0.4f;

    Marker2D a = GetNode<Marker2D>("A");
    Marker2D b = GetNode<Marker2D>("B");
    Sprite2D sprite = GetNode<Sprite2D>("Sprite2D");

    sprite.Position = a.Position.Lerp(b.Position, _t);
}

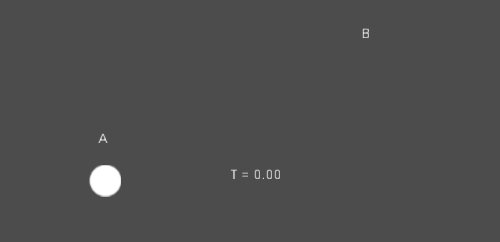

Esto producirá el siguiente movimiento:

Interpolación de matriz de transformación

It is also possible to interpolate whole transforms (make sure they have either uniform scale or, at least, the same non-uniform scale). For this, the function Transform3D.interpolate_with() can be used.

Aquí hay un ejemplo de la transformación de un mono de la Posición1 a la Posición2:

../../_images/interpolation_positions.png

Utilizando el siguiente pseudocódigo:

var t = 0.0

func _physics_process(delta):
    t += delta

    $Monkey.transform = $Position1.transform.interpolate_with($Position2.transform, t)

private float _t = 0.0f;

public override void _PhysicsProcess(double delta)
{
    _t += (float)delta;

    Marker3D p1 = GetNode<Marker3D>("Position1");
    Marker3D p2 = GetNode<Marker3D>("Position2");
    CSGMesh3D monkey = GetNode<CSGMesh3D>("Monkey");

    monkey.Transform = p1.Transform.InterpolateWith(p2.Transform, _t);
}

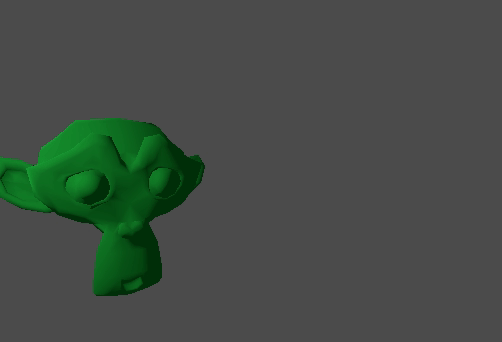

Y de nuevo, producirá el siguiente movimiento:

Suavizando el movimiento

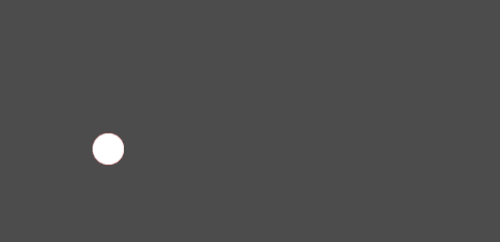

Interpolation can be used to smoothly follow a moving target value, such as a position or a rotation. Each frame, lerp() moves the current value towards the target value by a fixed percentage of the remaining difference between the values. The current value will smoothly move towards the target, slowing down as it gets closer. Here is an example of a circle following the mouse using interpolation smoothing:

const FOLLOW_SPEED = 4.0

func _physics_process(delta):
    var mouse_pos = get_local_mouse_position()

    $Sprite2D.position = $Sprite2D.position.lerp(mouse_pos, delta * FOLLOW_SPEED)

private const float FollowSpeed = 4.0f;

public override void _PhysicsProcess(double delta)
{
    Vector2 mousePos = GetLocalMousePosition();

    Sprite2D sprite = GetNode<Sprite2D>("Sprite2D");

    sprite.Position = sprite.Position.Lerp(mousePos, (float)delta * FollowSpeed);
}

Así es cómo se ve:

This is useful for smoothing camera movement, for allies following the player (ensuring they stay within a certain range), and for many other common game patterns.

Nota

Despite using delta, the formula used above is framerate-dependent, because the weight parameter of lerp() represents a percentage of the remaining difference in values, not an absolute amount to change. In _physics_process(), this is usually fine because physics is expected to maintain a constant framerate, and therefore delta is expected to remain constant.

For a framerate-independent version of interpolation smoothing that can also be used in process(), use the following formula instead:

const FOLLOW_SPEED = 4.0

func _process(delta):
    var mouse_pos = get_local_mouse_position()
    var weight = 1 - exp(-FOLLOW_SPEED * delta)
    $Sprite2D.position = $Sprite2D.position.lerp(mouse_pos, weight)

private const float FollowSpeed = 4.0f;

public override void _Process(double delta)
{
    Vector2 mousePos = GetLocalMousePosition();

    Sprite2D sprite = GetNode<Sprite2D>("Sprite2D");
    float weight = 1f - Mathf.Exp(-FollowSpeed * (float)delta);
    sprite.Position = sprite.Position.Lerp(mousePos, weight);
}

Deriving this formula is beyond the scope of this page. For an explanation, see Improved Lerp Smoothing or watch Lerp smoothing is broken.
