Size and anchors¶
If a game was always going to be run on the same device and at the same resolution, positioning controls would be a simple matter of setting the position and size of each one of them. Unfortunately, that is rarely the case.
Only TVs nowadays have a standard resolution and aspect ratio. Everything else, from computer monitors to tablets, portable consoles and mobile phones have different resolutions and aspect ratios.
There are several ways to handle this, but for now, let's just imagine that the screen resolution has changed and the controls need to be re-positioned. Some will need to follow the bottom of the screen, others the top of the screen, or maybe the right or left margins.

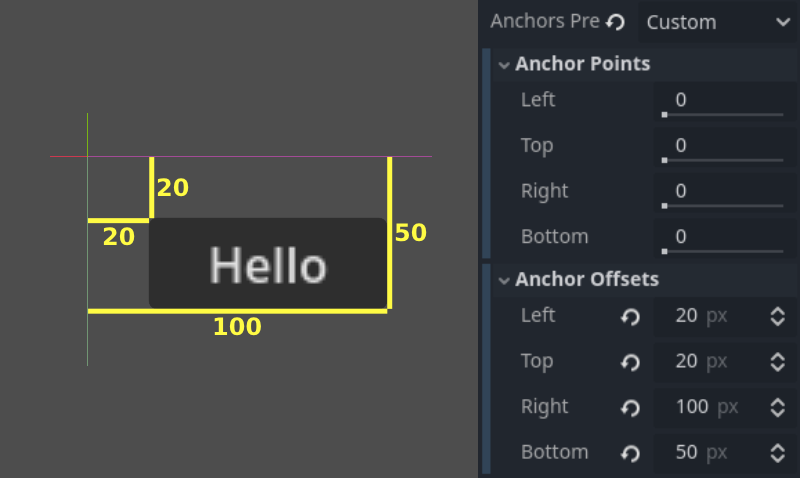

This is done by editing the margin properties of controls. Each control has four margins: left, right, bottom, and top, which correspond to the respective edges of the control. By default, all of them represent a distance in pixels relative to the top-left corner of the parent control or (in case there is no parent control) the viewport.
So to make the control wider you can make the right margin larger and/or make the left margin smaller. This lets you set the exact placement and shape of the control.
The anchor properties adjust where the margin distances are relative to. Each margin has an individual anchor that can be adjusted from the beginning to the end of the parent. So the vertical (top, bottom) anchors adjust from 0 (top of parent) to 1.0 (bottom of parent) with 0.5 being the center, and the control margins will be placed relative to that point. The horizontal (left, right) anchors similarly adjust from left to right of the parent.
Note that when you wish the edge of a control to be above or left of the anchor point, you must change the margin value to be negative.

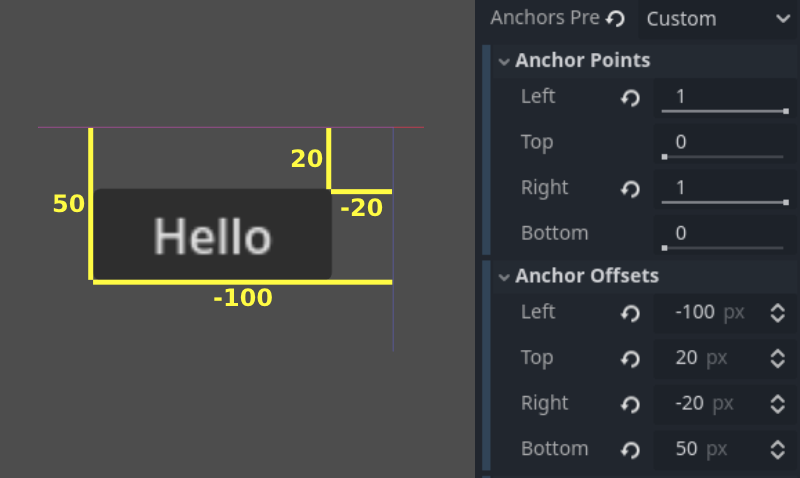

For example: when horizontal anchors are changed to 1, the margin values become relative to the top-right corner of the parent control or viewport.

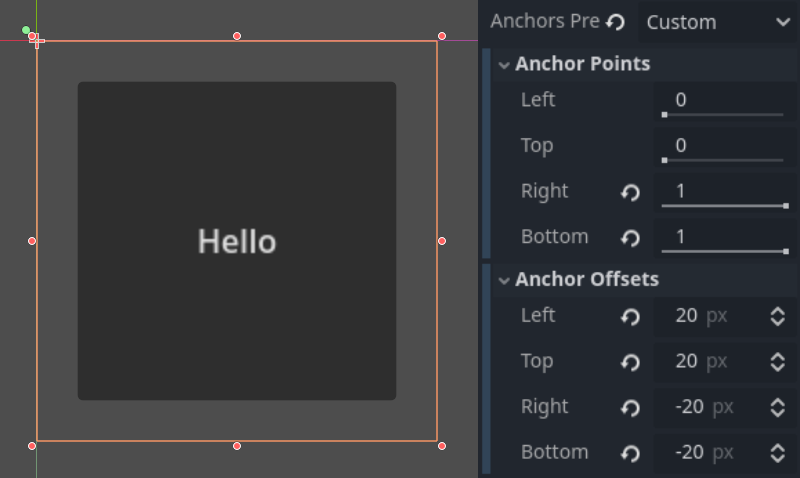

Adjusting the two horizontal or the two vertical anchors to different values will make the control change size when the parent control does. Here, the control is set to anchor its bottom-right corner to the parent's bottom-right, while the top-left control margins are still anchored to the top-left of the parent, so when re-sizing the parent, the control will always cover it, leaving a 20 pixel margin:
Centering a control¶
To center a control in its parent, set its anchors to 0.5 and each margin to half of its relevant dimension. For example, the code below shows how a TextureRect can be centered in its parent:
var rect = TextureRect.new() rect.texture = load("res://icon.png") rect.anchor_left = 0.5 rect.anchor_right = 0.5 rect.anchor_top = 0.5 rect.anchor_bottom = 0.5 var texture_size = rect.texture.get_size() rect.offset_left = -texture_size.x / 2 rect.offset_right = texture_size.x / 2 rect.offset_top = -texture_size.y / 2 rect.offset_bottom = texture_size.y / 2 add_child(rect)
var rect = new TextureRect(); rect.Texture = ResourceLoader.Load<Texture>("res://icon.png"); rect.AnchorLeft = 0.5f; rect.AnchorRight = 0.5f; rect.AnchorTop = 0.5f; rect.AnchorBottom = 0.5f; var textureSize = rect.Texture.GetSize(); rect.OffsetLeft = -textureSize.x / 2; rect.OffsetRight = textureSize.x / 2; rect.OffsetTop = -textureSize.y / 2; rect.OffsetBottom = textureSize.y / 2; AddChild(rect);
Setting each anchor to 0.5 moves the reference point for the margins to the center of its parent. From there, we set negative margins so that the control gets its natural size.
Instead of manually adjusting the margin and anchor values, you can use the toolbar's Layout menu, above the viewport. Besides centering, it gives you many options to align and resize control nodes.
