Utilizzo di ArrayMesh

This tutorial will present the basics of using an ArrayMesh.

To do so, we will use the function add_surface_from_arrays(), which takes up to five parameters. The first two are required, while the last three are optional.

Il primo parametro è PrimitiveType, un concetto OpenGL che indica alla GPU come disporre la primitiva in base ai vertici forniti, ovvero se rappresentano triangoli, linee, punti, ecc. Consultare Mesh.PrimitiveType per le opzioni disponibili.

The second parameter, arrays, is the actual Array that stores the mesh information. The array is a normal Godot array that is constructed with empty brackets []. It stores a Packed**Array (e.g. PackedVector3Array, PackedInt32Array, etc.) for each type of information that will be used to build the surface.

Common elements of arrays are listed below, together with the position they must have within arrays. See Mesh.ArrayType for a full list.

Indice	Enum Mesh.ArrayType	Tipo di array
0	`ARRAY_VERTEX`	PackedVector3Array o PackedVector2Array
1	`ARRAY_NORMAL`	PackedVector3Array
2	`ARRAY_TANGENT`	PackedFloat32Array o PackedFloat64Array in gruppi di 4 float. I primi 3 float determinano la tangente, mentre l'ultimo float determina la direzione binormale, come -1 o 1.
3	`ARRAY_COLOR`	PackedColorArray
4	`ARRAY_TEX_UV`	PackedVector2Array o PackedVector3Array
5	`ARRAY_TEX_UV2`	PackedVector2Array o PackedVector3Array
10	`ARRAY_BONES`	PackedFloat32Array in gruppi di 4 float o PackedInt32Array in gruppi di 4 int. Ogni gruppo elenca gli indici di 4 ossa che influenzano un determinato vertice.
11	`ARRAY_WEIGHTS`	PackedFloat32Array o PackedFloat64Array in gruppi di 4 float. Ogni float elenca la quantità di peso che l'osso corrispondente in `ARRAY_BONES` ha su un determinato vertice.
12	`ARRAY_INDEX`	PackedInt32Array

In most cases when creating a mesh, we define it by its vertex positions. So usually, the array of vertices (at index 0) is required, while the index array (at index 12) is optional and will only be used if included. It is also possible to create a mesh with only the index array and no vertex array, but that's beyond the scope of this tutorial.

All the other arrays carry information about the vertices. They are optional and will only be used if included. Some of these arrays (e.g. ARRAY_COLOR) use one entry per vertex to provide extra information about vertices. They must have the same size as the vertex array. Other arrays (e.g. ARRAY_TANGENT) use four entries to describe a single vertex. These must be exactly four times larger than the vertex array.

For normal usage, the last three parameters in add_surface_from_arrays() are typically left empty.

Preparazione dell'ArrayMesh

In the editor, create a MeshInstance3D and add an ArrayMesh to it in the Inspector. Normally, adding an ArrayMesh in the editor is not useful, but in this case it allows us to access the ArrayMesh from code without creating one.

Next, add a script to the MeshInstance3D.

Under _ready(), create a new Array.

var surface_array = []

Godot.Collections.Array surfaceArray = [];

This will be the array that we keep our surface information in - it will hold all the arrays of data that the surface needs. Godot will expect it to be of size Mesh.ARRAY_MAX, so resize it accordingly.

var surface_array = []
surface_array.resize(Mesh.ARRAY_MAX)

Godot.Collections.Array surfaceArray = [];
surfaceArray.Resize((int)Mesh.ArrayType.Max);

Next create the arrays for each data type you will use.

var verts = PackedVector3Array()
var uvs = PackedVector2Array()
var normals = PackedVector3Array()
var indices = PackedInt32Array()

List<Vector3> verts = [];
List<Vector2> uvs = [];
List<Vector3> normals = [];
List<int> indices = [];

Once you have filled your data arrays with your geometry you can create a mesh by adding each array to surface_array and then committing to the mesh.

surface_array[Mesh.ARRAY_VERTEX] = verts
surface_array[Mesh.ARRAY_TEX_UV] = uvs
surface_array[Mesh.ARRAY_NORMAL] = normals
surface_array[Mesh.ARRAY_INDEX] = indices

# No blendshapes, lods, or compression used.
mesh.add_surface_from_arrays(Mesh.PRIMITIVE_TRIANGLES, surface_array)

surfaceArray[(int)Mesh.ArrayType.Vertex] = verts.ToArray();
surfaceArray[(int)Mesh.ArrayType.TexUV] = uvs.ToArray();
surfaceArray[(int)Mesh.ArrayType.Normal] = normals.ToArray();
surfaceArray[(int)Mesh.ArrayType.Index] = indices.ToArray();

var arrMesh = Mesh as ArrayMesh;
if (arrMesh != null)
{
    // No blendshapes, lods, or compression used.
    arrMesh.AddSurfaceFromArrays(Mesh.PrimitiveType.Triangles, surfaceArray);
}

Nota

In this example, we used Mesh.PRIMITIVE_TRIANGLES, but you can use any primitive type available from mesh.

Put together, the full code looks like:

extends MeshInstance3D

func _ready():
    var surface_array = []
    surface_array.resize(Mesh.ARRAY_MAX)

    # PackedVector**Arrays for mesh construction.
    var verts = PackedVector3Array()
    var uvs = PackedVector2Array()
    var normals = PackedVector3Array()
    var indices = PackedInt32Array()

    #######################################
    ## Insert code here to generate mesh ##
    #######################################

    # Assign arrays to surface array.
    surface_array[Mesh.ARRAY_VERTEX] = verts
    surface_array[Mesh.ARRAY_TEX_UV] = uvs
    surface_array[Mesh.ARRAY_NORMAL] = normals
    surface_array[Mesh.ARRAY_INDEX] = indices

    # Create mesh surface from mesh array.
    # No blendshapes, lods, or compression used.
    mesh.add_surface_from_arrays(Mesh.PRIMITIVE_TRIANGLES, surface_array)

public partial class MyMeshInstance3D : MeshInstance3D
{
    public override void _Ready()
    {
        Godot.Collections.Array surfaceArray = [];
        surfaceArray.Resize((int)Mesh.ArrayType.Max);

        // C# arrays cannot be resized or expanded, so use Lists to create geometry.
        List<Vector3> verts = [];
        List<Vector2> uvs = [];
        List<Vector3> normals = [];
        List<int> indices = [];

        /***********************************
        * Insert code here to generate mesh.
        * *********************************/

        // Convert Lists to arrays and assign to surface array
        surfaceArray[(int)Mesh.ArrayType.Vertex] = verts.ToArray();
        surfaceArray[(int)Mesh.ArrayType.TexUV] = uvs.ToArray();
        surfaceArray[(int)Mesh.ArrayType.Normal] = normals.ToArray();
        surfaceArray[(int)Mesh.ArrayType.Index] = indices.ToArray();

        var arrMesh = Mesh as ArrayMesh;
        if (arrMesh != null)
        {
            // Create mesh surface from mesh array
            // No blendshapes, lods, or compression used.
            arrMesh.AddSurfaceFromArrays(Mesh.PrimitiveType.Triangles, surfaceArray);
        }
    }
}

The code that goes in the middle can be whatever you want. Below we will present some example code for generating shapes, starting with a rectangle.

Generare un rettangolo

Poiché utilizziamo Mesh.PRIMITIVE_TRIANGLES per renderizzare, costruiremo un rettangolo con dei triangoli.

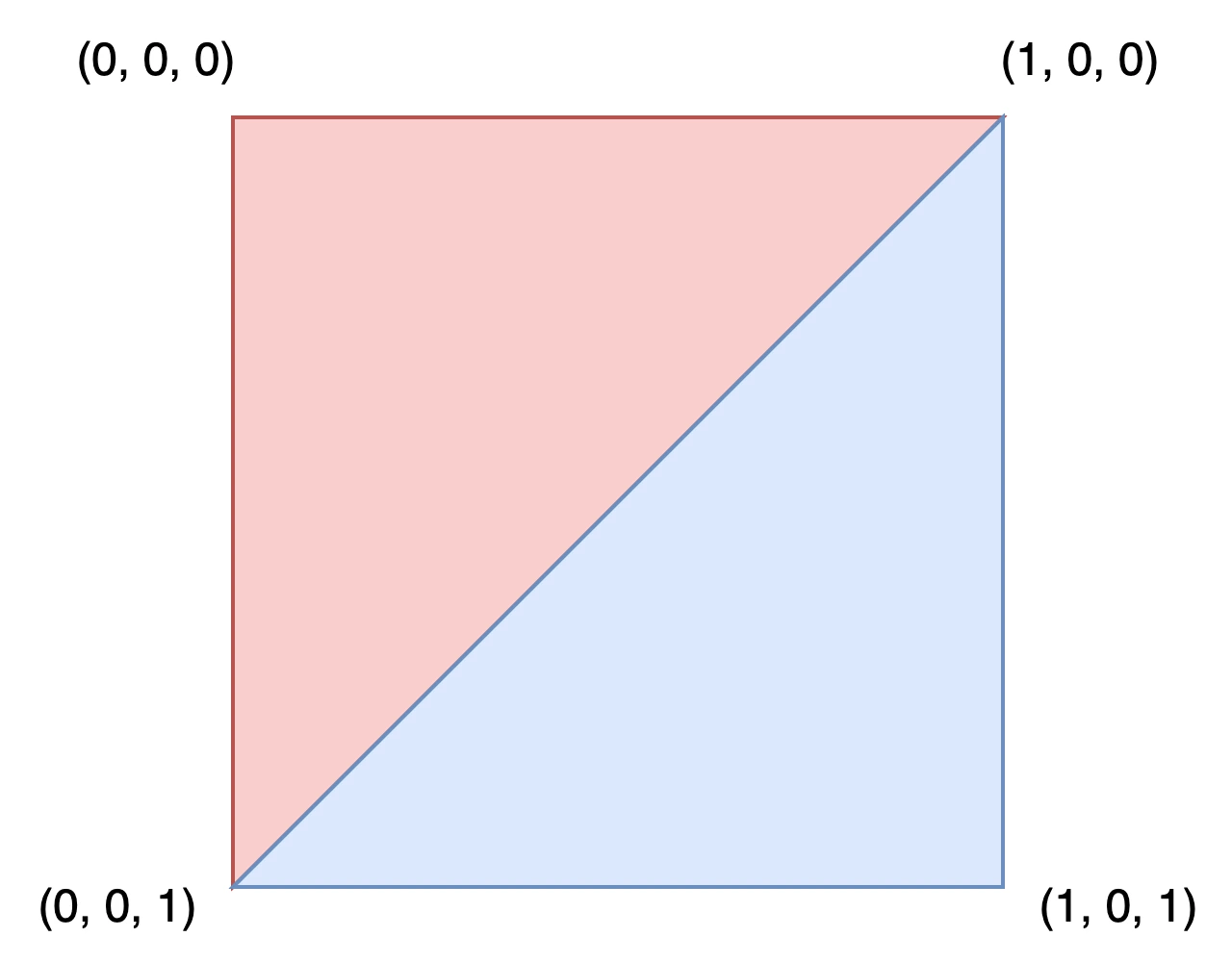

Un rettangolo è formato da due triangoli che condividono quattro vertici. Nel nostro esempio, creeremo un rettangolo con il suo vertice superiore sinistro in (0, 0, 0) e con una larghezza e lunghezza di uno, come mostrato di seguito:

Un rettangolo formato da due triangoli che condividono quattro vertici.

Per disegnare questo rettangolo, definisci le coordinate di ciascun vertice nell'array verts.

verts = PackedVector3Array([
        Vector3(0, 0, 0),
        Vector3(0, 0, 1),
        Vector3(1, 0, 0),
        Vector3(1, 0, 1),
    ])

verts.AddRange(new Vector3[]
{
    new Vector3(0, 0, 0),
    new Vector3(0, 0, 1),
    new Vector3(1, 0, 0),
    new Vector3(1, 0, 1),
});

L'array uvs aiuta a descrivere dove le parti di una texture devono andare sulla mesh. I valori vanno da 0 a 1. A seconda della texture, potrebbe essere desiderato modificare questi valori.

uvs = PackedVector2Array([
        Vector2(0, 0),
        Vector2(1, 0),
        Vector2(0, 1),
        Vector2(1, 1),
    ])

uvs.AddRange(new Vector2[]
{
    new Vector2(0, 0),
    new Vector2(1, 0),
    new Vector2(0, 1),
    new Vector2(1, 1),
});

L'array normals serve per descrivere la direzione verso cui puntano i vertici ed è utilizzato nei calcoli di illuminazione. Per questo esempio, lasceremo la direzione al valore predefinito di Vector3.UP.

normals = PackedVector3Array([
        Vector3.UP,
        Vector3.UP,
        Vector3.UP,
        Vector3.UP,
    ])

normals.AddRange(new Vector3[]
{
    Vector3.Up,
    Vector3.Up,
    Vector3.Up,
    Vector3.Up,
});

L'array indices definisce l'ordine in cui sono disegnati i vertici. Godot renderizza in senso orario, il che significa che dobbiamo specificare i vertici di un triangolo che vogliamo disegnare in senso orario.

Ad esempio, per disegnare il primo triangolo, dovremo disegnare i vertici (0, 0, 0), (1, 0, 0) e (0, 0, 1) in quest'ordine. Questo equivale a disegnare vert[0], vert[2] e vert[1], ovvero gli indici 0, 2 e 1 nell'array verts. Questi sono i valori di indice definiti dall'array indices.

Indice	`verts[Index]`	`uvs[Index]`	`normals[Index]`
0	(0, 0, 0)	(0, 0)	Vector3.UP
1	(0, 0, 1)	(1, 0)	Vector3.UP
2	(1, 0, 0)	(0, 1)	Vector3.UP
3	(1, 0, 1)	(1, 1)	Vector3.UP

indices = PackedInt32Array([
        0, 2, 1, # Draw the first triangle.
        2, 3, 1, # Draw the second triangle.
    ])

indices.AddRange(new int[]
{
    0, 2, 1, // Draw the first triangle.
    2, 3, 1, // Draw the second triangle.
});

Messo assieme, il codice per la generazione del rettangolo appare così:

extends MeshInstance3D

func _ready():

  # Insert setting up the PackedVector**Arrays here.

  verts = PackedVector3Array([
          Vector3(0, 0, 0),
          Vector3(0, 0, 1),
          Vector3(1, 0, 0),
          Vector3(1, 0, 1),
      ])

  uvs = PackedVector2Array([
          Vector2(0, 0),
          Vector2(1, 0),
          Vector2(0, 1),
          Vector2(1, 1),
      ])

  normals = PackedVector3Array([
          Vector3.UP,
          Vector3.UP,
          Vector3.UP,
          Vector3.UP,
      ])

  indices = PackedInt32Array([
          0, 2, 1,
          2, 3, 1,
      ])

  # Insert committing to the ArrayMesh here.

using System.Collections.Generic;

public partial class MeshInstance3d : MeshInstance3D
{
  public override void _Ready()
  {
      // Insert setting up the surface array and lists here.

      verts.AddRange(new Vector3[]
      {
          new Vector3(0, 0, 0),
          new Vector3(0, 0, 1),
          new Vector3(1, 0, 0),
          new Vector3(1, 0, 1),
      });

      uvs.AddRange(new Vector2[]
      {
          new Vector2(0, 0),
          new Vector2(1, 0),
          new Vector2(0, 1),
          new Vector2(1, 1),
      });

      normals.AddRange(new Vector3[]
      {
          Vector3.Up,
          Vector3.Up,
          Vector3.Up,
          Vector3.Up,
      });

      indices.AddRange(new int[]
      {
          0, 2, 1,
          2, 3, 1,
      });

      // Insert committing to the ArrayMesh here.
  }
}

For a more complex example, see the sphere generation section below.

Generare una sfera

Here is sample code for generating a sphere. Although the code is presented in GDScript, there is nothing Godot specific about the approach to generating it. This implementation has nothing in particular to do with ArrayMeshes and is just a generic approach to generating a sphere. If you are having trouble understanding it or want to learn more about procedural geometry in general, you can use any tutorial that you find online.

extends MeshInstance3D

var rings = 50
var radial_segments = 50
var radius = 1

func _ready():

    # Insert setting up the PackedVector**Arrays here.

    # Vertex indices.
    var thisrow = 0
    var prevrow = 0
    var point = 0

    # Loop over rings.
    for i in range(rings + 1):
        var v = float(i) / rings
        var w = sin(PI * v)
        var y = cos(PI * v)

        # Loop over segments in ring.
        for j in range(radial_segments + 1):
            var u = float(j) / radial_segments
            var x = sin(u * PI * 2.0)
            var z = cos(u * PI * 2.0)
            var vert = Vector3(x * radius * w, y * radius, z * radius * w)
            verts.append(vert)
            normals.append(vert.normalized())
            uvs.append(Vector2(u, v))
            point += 1

            # Create triangles in ring using indices.
            if i > 0 and j > 0:
                indices.append(prevrow + j - 1)
                indices.append(prevrow + j)
                indices.append(thisrow + j - 1)

                indices.append(prevrow + j)
                indices.append(thisrow + j)
                indices.append(thisrow + j - 1)

        prevrow = thisrow
        thisrow = point

  # Insert committing to the ArrayMesh here.

public partial class MyMeshInstance3D : MeshInstance3D
{
    private int _rings = 50;
    private int _radialSegments = 50;
    private float _radius = 1;

    public override void _Ready()
    {
        // Insert setting up the surface array and lists here.

        // Vertex indices.
        var thisRow = 0;
        var prevRow = 0;
        var point = 0;

        // Loop over rings.
        for (var i = 0; i < _rings + 1; i++)
        {
            var v = ((float)i) / _rings;
            var w = Mathf.Sin(Mathf.Pi * v);
            var y = Mathf.Cos(Mathf.Pi * v);

            // Loop over segments in ring.
            for (var j = 0; j < _radialSegments + 1; j++)
            {
                var u = ((float)j) / _radialSegments;
                var x = Mathf.Sin(u * Mathf.Pi * 2);
                var z = Mathf.Cos(u * Mathf.Pi * 2);
                var vert = new Vector3(x * _radius * w, y * _radius, z * _radius * w);
                verts.Add(vert);
                normals.Add(vert.Normalized());
                uvs.Add(new Vector2(u, v));
                point += 1;

                // Create triangles in ring using indices.
                if (i > 0 && j > 0)
                {
                    indices.Add(prevRow + j - 1);
                    indices.Add(prevRow + j);
                    indices.Add(thisRow + j - 1);

                    indices.Add(prevRow + j);
                    indices.Add(thisRow + j);
                    indices.Add(thisRow + j - 1);
                }
            }

            prevRow = thisRow;
            thisRow = point;
        }

        // Insert committing to the ArrayMesh here.
    }
}

Salvare

Finally, we can use the ResourceSaver class to save the ArrayMesh. This is useful when you want to generate a mesh and then use it later without having to re-generate it.

# Saves mesh to a .tres file with compression enabled.
ResourceSaver.save(mesh, "res://sphere.tres", ResourceSaver.FLAG_COMPRESS)

// Saves mesh to a .tres file with compression enabled.
ResourceSaver.Save(Mesh, "res://sphere.tres", ResourceSaver.SaverFlags.Compress);
